UCS2D331MHD - Nichicon

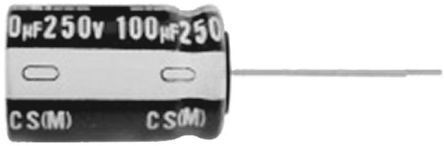

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

UCS2D331MHD
Manufacturer

Nichicon
ChipWorker Part#

CW6764644
Category

Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package

Radial, CAN
Description

330uF ±20% 200V 3220mA(100kHz)3220mA Φ18mm
Documentation

Datasheet

UCS2D331MHD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

UCS2D331MHD Specifications

Attribute	Attribute Value

Part Number	UCS2D331MHD
Manufacturer	Nichicon
ChipWorker Part#	CW6764644
Category	Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	7.5 mm
Voltage Rating (DC)	200 V
Operating Voltage	200 VDC
Capacitance	330 µF
Capacitance Tolerance	±20 %
Part Family	UCS
Ripple Current	3220 mA
Ripple Current (Low Frequency)	1.61A @120Hz
Ripple Current (High Frequency)	3.22A @100kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	200 V
	expand all
Size-Height	35.5 mm
Size-Diameter	18.0 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	250
Life (Hours)	10000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

**Features:
**
* High Ripple Current
* Load Life of 8000 to 10000 Hours at 105°C
* Suited for Ballast Applications
* Compliant to the RoHS Directive (2002/95/IEC)
