US5U1TR - ROHM Semiconductor

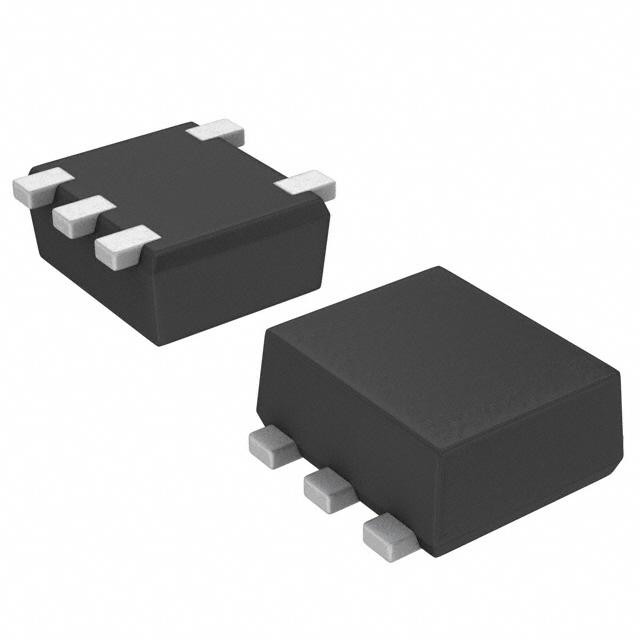

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

US5U1TR
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW143186413
Category

MOSFET, MOSFET Transistor
Package

SOT-353-5
Description

TUMT N-CH 30V 1.5A
Documentation

Datasheet

US5U1TR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

US5U1TR Specifications

Attribute	Attribute Value

Part Number	US5U1TR
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW143186413
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-353-5
Voltage Rating (DC)	30.0 V
Current Rating	1.50 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	240 mΩ
Polarity	N-Channel
Power Dissipation	700 mW
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30 V
Continuous Drain Current (Ids)	1.50 A
Rise Time	9 ns
Input Capacitance (Ciss)	80pF @10V(Vds)
Input Power (Max)	700 mW
Fall Time	6 ns
Power Dissipation (Max)	1W (Ta)
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	0.85 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 30V 1.5A (Ta) 1W (Ta) Surface Mount TUMT5
