UWT1E330MCL1GB - Nichicon

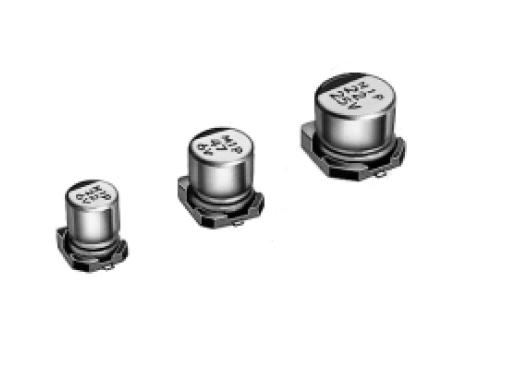

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

UWT1E330MCL1GB
Manufacturer

Nichicon
ChipWorker Part#

CW10624663
Category

Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package

SMD
Description

33uF ±20% 25V Φ6.3mm 5.4mm
Documentation

Datasheet

UWT1E330MCL1GB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

UWT1E330MCL1GB Specifications

Attribute	Attribute Value

Part Number	UWT1E330MCL1GB
Manufacturer	Nichicon
ChipWorker Part#	CW10624663
Category	Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD
Voltage Rating (DC)	25.0 V
Operating Voltage	25 VDC
Capacitance	33 µF
Capacitance Tolerance	±20 %
Part Family	UWT
Ripple Current	48 mA
Ripple Current (Low Frequency)	48mA @120Hz
Ripple Current (High Frequency)	72mA @10kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	25 V
	expand all
Size-Length	6.6 mm
Size-Width	6.6 mm
Size-Height	5.4 mm
Size-Diameter	6.30 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	1000
Life (Hours)	1000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

33µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
