VIPER013LS - ST Microelectronics

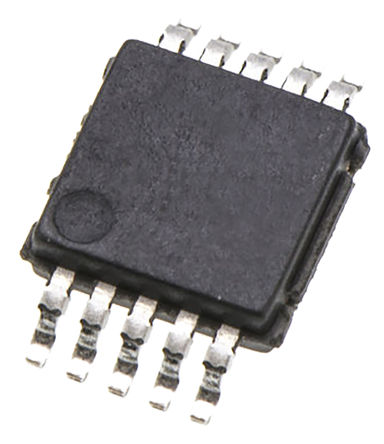

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

VIPER013LS
Manufacturer

ST Microelectronics
ChipWorker Part#

CW63767835
Category

AC to DC Converter, AC/DC Power Module
Package

SSOP-10
Description

STMICROELECTRONICS VIPER013LS AC-DC Converter IC, VIPerPlus Family, Buck, Buck-Boost, Flyback, 4.5VAC - 30VAC, 1W, SSOP-10 New
Documentation

Datasheet

VIPER013LS Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

VIPER013LS Specifications

Attribute	Attribute Value

Part Number	VIPER013LS
Manufacturer	ST Microelectronics
ChipWorker Part#	CW63767835
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	SSOP-10
Power Rating	1 W
Breakdown Voltage	800 V
Number of Positions	10 Position
Switching Frequency	66 kHz
Duty Cycle	80 %
Input Voltage (Max)	30 V
Input Voltage (Min)	4.5 V
Input Voltage (AC Max)	30 v
Input Voltage (AC Min)	4.5 v
Output Voltage (Max)	5 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	30 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 30V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17

Product Description

Converter Offline Buck, Buck-Boost, Flyback Topology 60kHz 10-SSOP
