VN751PT - ST Microelectronics

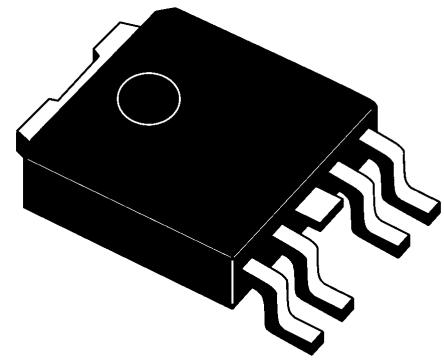

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

VN751PT
Manufacturer

ST Microelectronics
ChipWorker Part#

CW16203617
Category

FET Driver
Package

TO-252-5
Description

Power Switch Hi Side 1Out 2.5A 0.06Ω 5Pin(4+Tab) PPAK Tube
Documentation

Datasheet

VN751PT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

VN751PT Specifications

Attribute	Attribute Value

Part Number	VN751PT
Manufacturer	ST Microelectronics
ChipWorker Part#	CW16203617
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Number of Outputs	1 Output
Output Current	6 A
Supply Current	1.5 mA
Output Current (Max)	2.5 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	6.6 mm
Size-Width	6.2 mm
Size-Height	2.4 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

For all your high current and voltage switching needs, use this high side VN751PT power switch by STMicroelectronics to get the fastest on and off response. This charge controller has single output. It features 0.06 Ohm switch on resistance. This device has a supply current of 1.5 mA and a minimum output current of 2.5 A. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This charge controller has an operating temperature range of -40 °C to 150 °C.
