X9C104S - Intersil

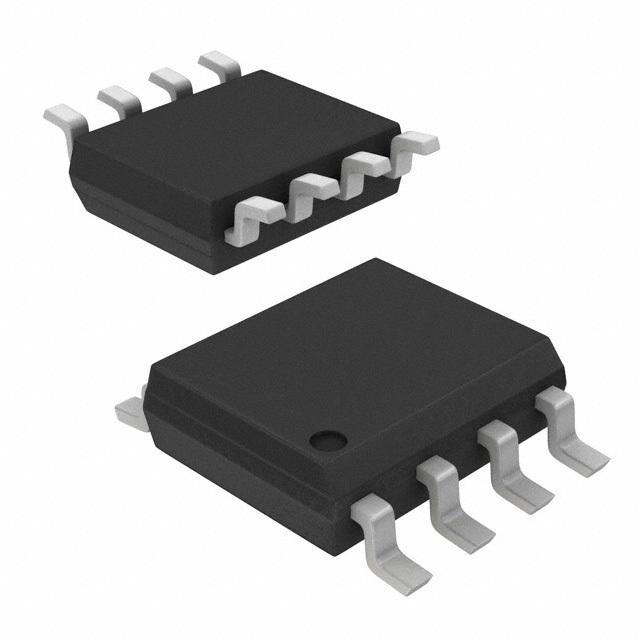

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

X9C104S
Manufacturer

Intersil
ChipWorker Part#

CW52132865
Category

Digital Potentiometer IC
Package

SOIC-8
Description

Digital Potentiometer 100KΩ 100POS Non-Volatile Linear 8Pin SOIC N
Documentation

Datasheet

X9C104S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

X9C104S Specifications

Attribute	Attribute Value

Part Number	X9C104S
Manufacturer	Intersil
ChipWorker Part#	CW52132865
Category	Digital Potentiometer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Capacitance Tolerance	±20 %
Power Rating	10.0 mW
Number of Circuits	1 Circuit
Number of Positions	100 Position
Resistance	100 kΩ
Resistance Tolerance	±20 %
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	5 V
	expand all
Operating Temperature	0℃ ~ 70℃
Temperature Coefficient	±300 ppm/℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Digital Potentiometer 100k Ohm 1 Circuit 100 Taps Up/Down (U/D, INC, CS) Interface 8-SOIC
