XPSVNE1142P - Schneider Electric

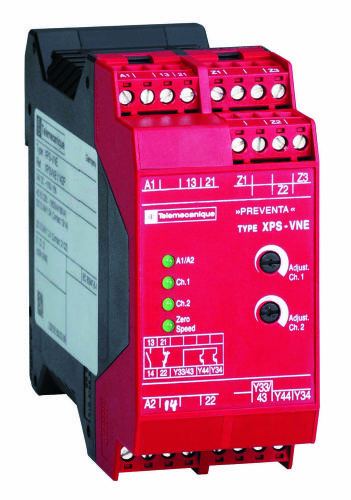

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

XPSVNE1142P
Manufacturer

Schneider Electric
ChipWorker Part#

CW285833906
Category

Safety Relay
Description

Electromechanical Relay 24VDC 2.5A SPST-NO/SPST-NC (( 99mm 45mm 114mm)) DIN Rail Safety Relay
Documentation

Datasheet

XPSVNE1142P Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

XPSVNE1142P Specifications

Attribute	Attribute Value

Part Number	XPSVNE1142P
Manufacturer	Schneider Electric
ChipWorker Part#	CW285833906
Category	Safety Relay
Documentation	Datasheet
Mounting Style	DIN Rail
Power Rating	3.5 W
Number of Outputs	4 Output
Contacts Type	SPST-NO
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating	24 VAC
Supply Voltage	24 VDC
	expand all
Size-Length	45 mm
Operating Temperature	-10℃ ~ 55℃
RoHS	RoHS Compliant

Product Description

Safety relays provide the logic for safety related systems and monitor the various inputs such as emergency stops or safety interlocks, and determine if the machine should be allowed to run or if the machine needs to stop, in accordance to US, European, and international safety standards.
**Features:**
* Simple to Use
* Cost Effective for Machinery with Few Safety Inputs
* No Programming Required
* Wide Variety of Functions to Choose From
* Dual Voltage Versions Available
* Removable Terminals for Easy Installation
