Z84C1516FSG - Zilog

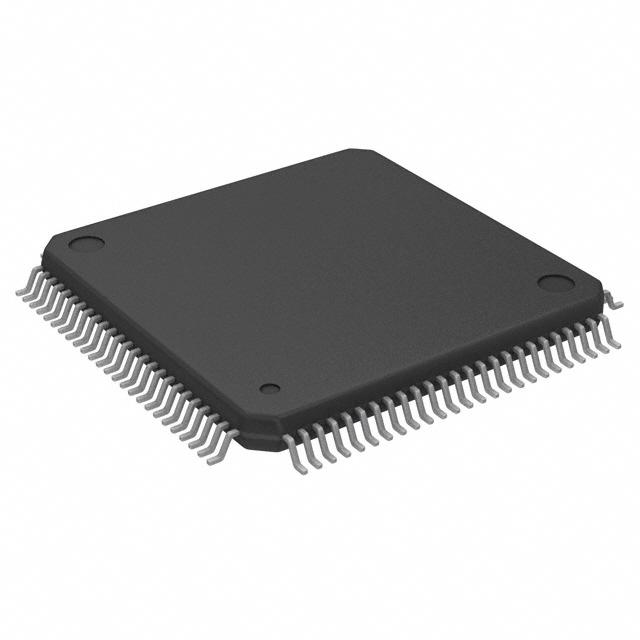

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

Z84C1516FSG
Manufacturer

Zilog
ChipWorker Part#

CW29521140
Category

Microprocessor IC
Package

PQFP-100
Description

Z84C15 Series 16MHz 5V SMT IPC Intelligent Peripheral Controller - VQFP-100
Documentation

Datasheet

Z84C1516FSG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

Z84C1516FSG Specifications

Attribute	Attribute Value

Part Number	Z84C1516FSG
Manufacturer	Zilog
ChipWorker Part#	CW29521140
Category	Microprocessor IC
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	PQFP-100
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Clock Speed	16.0 MHz
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	5 V
	expand all
Size-Length	20 mm
Size-Width	14 mm
Size-Height	2.9 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

* High speed operation 6, 10 MHz * 16 MHz operation * Low power consumption in four operation modes: 41 mA Typ. (Run mode) 6 mA Typ. (Idle1 mode) 60 pA Typ. (Idle2 mode) 0.5 pA Typ. (Stop mode) * Wide operational voltage range (5V ± 10%). * TTL/CMOS compatible. * Z84013 features: - Z84C00 Z80 CPU - On-chip two channel SIO (Z80 SIO). - On-chip four channel Counter Timer Controller (Z80 CTC). - Built-in Clock Generator Controller (CGC). * Built-in Watch Dog Timer (WDT). * Noise filter to CLK/TRG inputs of the CTC. * 84-pin PLCC package. * Z84015 features: - All Z84013 features, plus on-chip two 8-bit ports (Z80 PIO) and 100-pin QFP package. * Z84C15 enhancements: * Power-on reset. * Addition of two chip select pins. * 32-bit CRC for Channel A of SIO. * Wait state generator. * Simplified EV mode selection. * Schmitt-trigger inputs to transmit and receive clocks of the SIO. Crystal divide-by-one mode. * 100-pin VQFP.
