Z8F6421AN020EG - Zilog

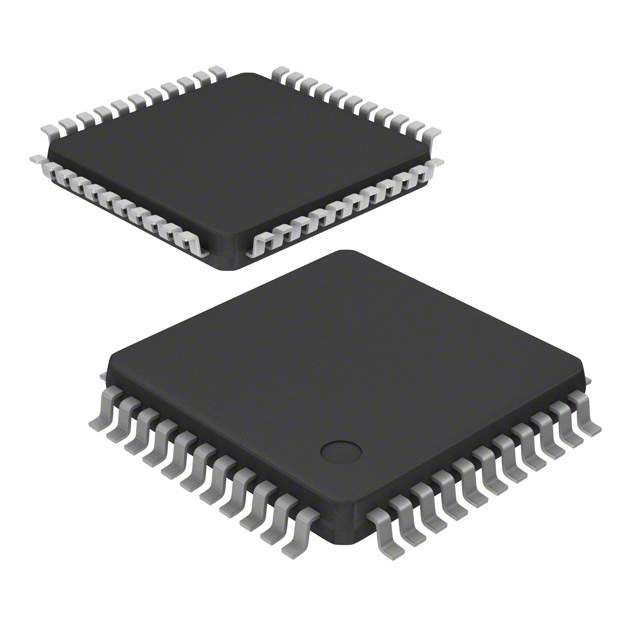

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

Z8F6421AN020EG
Manufacturer

Zilog
ChipWorker Part#

CW69678033
Category

Microcontroller, MCU IC
Package

LQFP-44
Description

MCU, 8Bit, XP F64xx Series, w/ 64KB Int Flash, 44Pin LQFP, 20MHz, -40℃~+105℃, Pb-free
Documentation

Datasheet

Z8F6421AN020EG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

Z8F6421AN020EG Specifications

Attribute	Attribute Value

Part Number	Z8F6421AN020EG
Manufacturer	Zilog
ChipWorker Part#	CW69678033
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	LQFP-44
Frequency	20 MHz
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Clock Speed	20.0 MHz, 20.0 MHz (max)
RAM Memory Size	4K x 8
Number of Bits	8 Bit
Number of I/O Pins	31 IO
Access Time	20.0 µs
Core Architecture	Z8
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 3.6V
	expand all
Size-Length	10.1 mm
Size-Width	10.1 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	PB free

Product Description

eZ8 Encore!® XP® Microcontroller IC 8-Bit 20MHz 64KB (64K x 8) FLASH 44-QFP (10x10)
