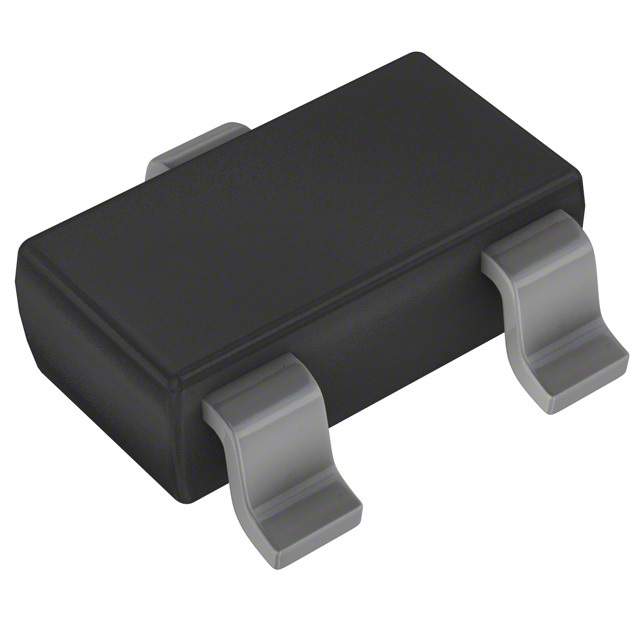

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ZXM61N02FTA
Manufacturer

Diodes
ChipWorker Part#

CW9070359
Category

MOSFET, MOSFET Transistor
Package

SOT-23-3
Description

Trans MOSFET N-CH 20V 1.7A 3Pin SOT-23 T/R
Documentation

Datasheet

ZXM61N02FTA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ZXM61N02FTA Specifications

Attribute	Attribute Value

Part Number	ZXM61N02FTA
Manufacturer	Diodes
ChipWorker Part#	CW9070359
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	20.0 V
Current Rating	1.70 A
Drain to Source Resistance (on) (Rds)	240 mΩ
Polarity	N-Channel
Power Dissipation	0.806 W
Input Capacitance	160 pF
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20.0 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	1.70 A
Rise Time	4.20 ns
Input Capacitance (Ciss)	160pF @15V(Vds)
Input Power (Max)	625 mW
Power Dissipation (Max)	625mW (Ta)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

ZXM61N02F 20 V 0.18 Ohm N-Channel Enhancement Mode Vertical DMOS FET - SOT-23
