0603YD105MAT2A ,Ceramic Capacitor - AVX

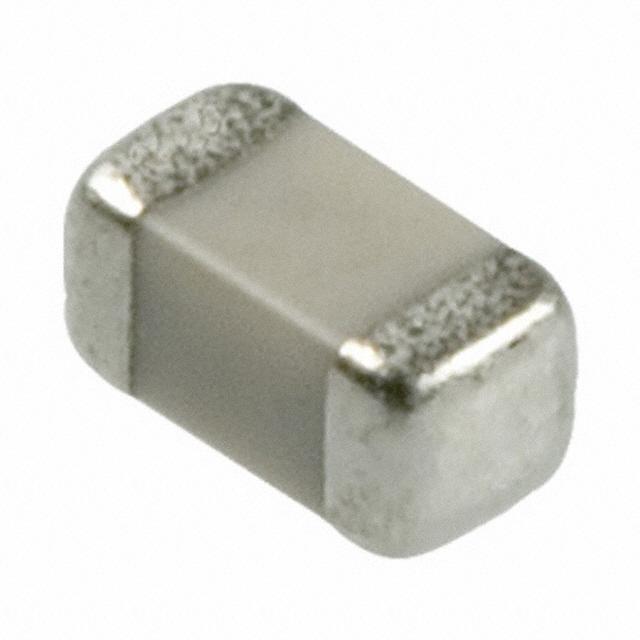

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

87 points

Part No

0603YD105MAT2A
Manufacturer

AVX
ChipWorker Part#

CW48052830
Category

Ceramic Capacitor
Package

0603
Description

0603 1uF ±20% 16V X5R
Documentation

Datasheet
Ships from

Moscow
Наличие

454038 pcs In Stock
Estimated Price

$ 0.01

Buy 0603YD105MAT2A

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

0603YD105MAT2A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

0603YD105MAT2A Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	0603YD105MAT2A
Manufacturer	AVX
ChipWorker Part#	CW48052830
Category	Ceramic Capacitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Voltage Rating (DC)	16.0 V
Insulation Resistance	10 GΩ
Capacitance	1 µF
Capacitance Tolerance	±20 %
Dielectric Characteristic	X5R
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	16 V
	expand all
Size-Length	1.6 mm
Size-Width	0.81 mm
Size-Height	0.9 mm
Material	X5R/-55℃~+85℃
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	4000
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The 0603YD105MAT2A is a surface-mount (SMT) Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The X5R dielectric is a Class II type dielectric suitable for higher capacitance applications. This dielectric offers high volumetric efficiency. This X5R capacitor is well suited for decoupling and filtering applications in mobile devices and other applications with size constraints.
Reflow/wave soldering method
General purpose dielectric for ceramic capacitor
EIA Class II dielectric
Temperature variation of capacitance is within ±15% from -55 to 85°C
Well suited for decoupling and filtering applications
Low parasitics
Excellent EMI filtering capabilities
Standard product
