2N6488 ,BJT Transistor, BJT - ON Semiconductor

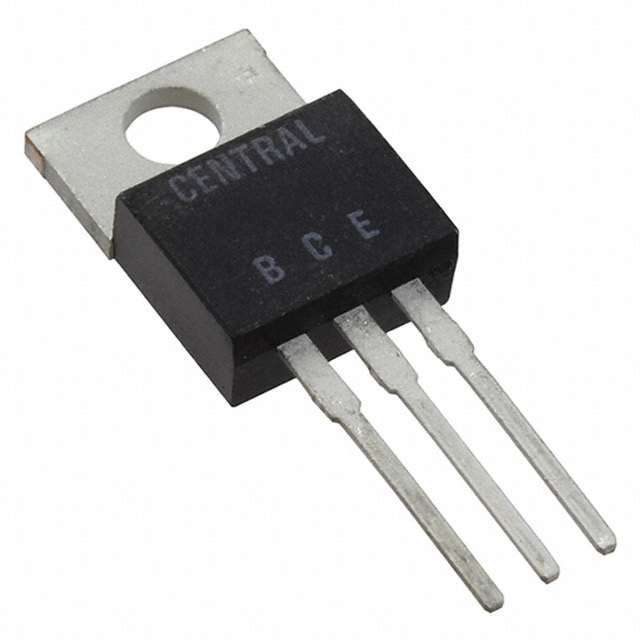

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

94 points

Part No

2N6488
Manufacturer

ON Semiconductor
ChipWorker Part#

CW73164267
Category

BJT Transistor, BJT
Package

TO-220-3
Description

TO-220-3 NPN 80V 15A
Documentation

Datasheet
Ships from

Moscow
Наличие

51907 pcs In Stock
Estimated Price

$ 0.23

Buy 2N6488

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

2N6488 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

2N6488 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	2N6488
Manufacturer	ON Semiconductor
ChipWorker Part#	CW73164267
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	80.0 V
Current Rating	15.0 A
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	15A
hFE Min	20 @5A, 4V
hFE Max	150
Input Power (Max)	1.8 W
	expand all
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	50
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The 15 A, 80 V PNP Bipolar Power Transistor is designed for use in general-purpose amplifier and switching applications. 2N6487, 2N6488 (NPN); and 2N6490, 2N6491 (PNP) are complementary devices.
Features
---
|
DC Current Gain Specified to 15 Amperes-- hFE = 20-150 @ IC = 5.0 Adc; hFE= 5.0 (Min) @ IC = 15 Adc
Collector-Emitter Sustaining Voltage--VCEO(sus) = 60 Vdc (Min) - 2N6487, 2N6490; VCEO(sus)= 80 Vdc (Min) - 2N6488, 2N6491
High Current Gain--Bandwidth Product
fT = 5.0 MHz (Min) @ IC = 1.0 Adc
TO-220AB Compact Package
Pb-Free Packages are Available
