2SB1188T100R - ROHM Semiconductor

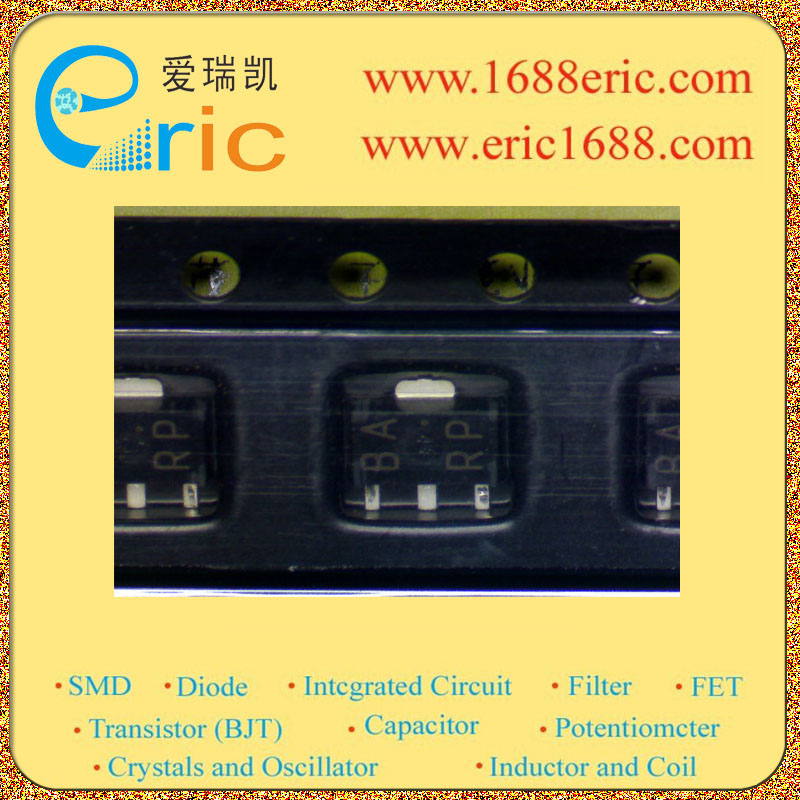

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SB1188T100R
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW4719650
Category

BJT Transistor, BJT
Package

MPT-3
Description

MPT PNP 32V 2A
Documentation

Datasheet

2SB1188T100R Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SB1188T100R Specifications

Attribute	Attribute Value

Part Number	2SB1188T100R
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW4719650
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	MPT-3
Voltage Rating (DC)	-32.0 V
Current Rating	-2.00 A
Power Rating	2 W
Polarity	PNP
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	32 V
Continuous Collector Current	2A
hFE Min	180 @500mA, 3V
Input Power (Max)	2 W
DC Current Gain (hFE)	82
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	2000 mW
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

2SB1188 Series 32 V 2 A SMT PNP Medium Power Transistor - SC-62
