2V7002WT1G - ON Semiconductor

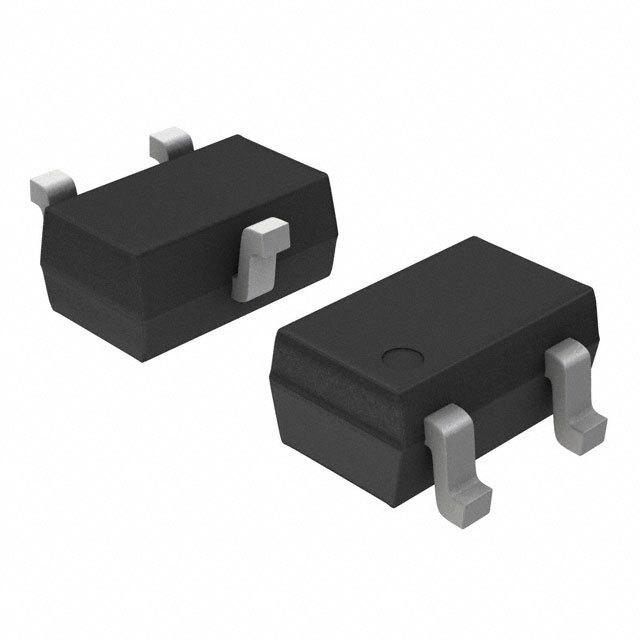

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2V7002WT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW3993830
Category

MOSFET, MOSFET Transistor
Package

SC-70-3
Description

Small Signal MOSFET 60V 340mA 1.6Ω Single N-Channel SC-70 Power MOSFET 60V, 340mA, 1.6Ω, N-Channel., SC-70 (SOT-323) 3 LEAD, 3000-REEL
Documentation

Datasheet

2V7002WT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2V7002WT1G Specifications

Attribute	Attribute Value

Part Number	2V7002WT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW3993830
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Halogen Free Status	Halogen Free
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.19 Ω
Polarity	N-Channel
Power Dissipation	280 mW
Threshold Voltage	2.5 V
Drain to Source Voltage (Vds)	60 V
Rise Time	9 ns
Input Capacitance (Ciss)	24.5pF @20V(Vds)
Fall Time	29 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	280 mW
	expand all
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20

Product Description

N-Channel 60V 310mA (Ta) 280mW (Tj) Surface Mount SC-70-3 (SOT323)
