74LCX541BQX - Fairchild

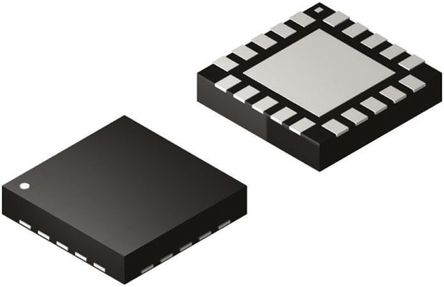

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74LCX541BQX
Manufacturer

Fairchild
ChipWorker Part#

CW81006833
Category

Buffer Gate IC
Package

DQFN-20
Description

Buffer/Line Driver 8CH Non-Inverting 3-ST CMOS 20Pin DQFN EP T/R
Documentation

Datasheet

74LCX541BQX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74LCX541BQX Specifications

Attribute	Attribute Value

Part Number	74LCX541BQX
Manufacturer	Fairchild
ChipWorker Part#	CW81006833
Category	Buffer Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	DQFN-20
Number of Outputs	8 Output
Number of Channels	8 Channel
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	4.5 mm
Size-Width	2.5 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

General Description
The LCX541 is an octal buffer/line driver designed to be employed as memory and address drivers, clock drivers and bus oriented transmitter/receivers. The LCX541 is a non inverting option of the LCX540.
Features
■ 5V tolerant input and outputs
■ 2.3V–3.6V VCC specifications provided
■ 6.5ns tPD max (VCC = 3.3V), 10µA ICC max
■ Power-down high impedance inputs and outputs
■ Supports live insertion/withdrawal1
■ ±24 mA output drive (VCC = 3.0V)
■ Implements patented noise/ EMI reduction circuitry
■ Latch-up performance exceeds JEDEC 78 conditions
■ ESD performance
– Human body model > 2000V
– Machine model > 200V
■ Leadless Pb-Free DQFN package
