AD2S44 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

28 points

Part No

AD2S44
Manufacturer

ADI
ChipWorker Part#

CW389442277
Description

Low Cost, 14Bit, Dual Channel Synchro/Resolver-to-Digital Converter
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy AD2S44

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD2S44 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD2S44 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD2S44
Manufacturer	ADI
ChipWorker Part#	CW389442277
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Similar products

Product Description

Product Details
The AD2S44 is a 14-bit dual channel, continuous tracking synchro/ resolver-to-digital converter. It has been designed specifically for applications where space, weight, and cost are at a premium. Each 32-lead hybrid device contains two independent Type II servo loop tracking converters. The ratiometric conversion technique employed provides excellent noise immunity and tolerance of long lead lengths.
The core of each conversion is performed by state-of-the-art mono-lithic, integrated circuits manufactured by the Analog Devices, Inc., proprietary BiMOS II process, which combines the advantages of low power CMOS digital logic with bipolar linear circuits. The use of these ICs keeps the internal component count low and ensures high reliability.
The built-in test (BIT) facility can be used in failsafe systems to provide an indication of whether the converter is tracking accurately.
Each channel incorporates a high accuracy differential condi-tioning circuit for signal inputs providing more than 74 dB of common-mode rejection. Options are available for both synchro and resolver format inputs. The converter output is via a three-state transparent latch allowing data to be read without interruption of the converter operation. The A/B and OE control lines select the channel and present the digital position to the common data outputs.
The AD2S44 also features independent reference inputs where different reference frequencies can be used for each channel.
All components are 100% tested at −55°C, +25°C, and +125°C. Devices are processed to high reliability screening standards and receive further levels of testing and screening to ensure high levels of reliability.
### Features and Benefits
Low per-channel cost

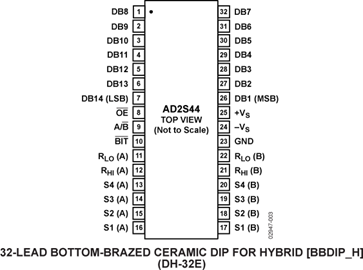

32-lead DIL hybrid package
2.6 arc minute accuracy
|
14-bit resolution
Built-in test
Independent reference inputs
High tracking rate
---|---
