AD5590 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

18 points

Part No

AD5590
Manufacturer

ADI
ChipWorker Part#

CW389485067
Description

16Input/16 Output Analog I/O Port With Integrated Amplifiers
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy AD5590

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD5590 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD5590 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD5590
Manufacturer	ADI
ChipWorker Part#	CW389485067
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant

Similar & Replacement Parts

Similar products

Product Description

Product Details

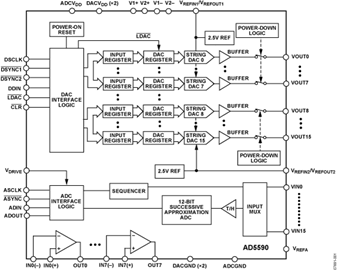

The AD5590 is a 16-channel input and 16-channel output analog I/O port with eight uncommitted amplifiers, operating from a single 4.5 V to 5.25 V supply. The AD5590 comprises 16 input channels multiplexed into a 1 MSPS, 12-bit successive approximation ADC with a sequencer to allow a preprogrammed selection of channels to be converted sequentially. The ADC contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 1 MHz.
The conversion process and data acquisition are controlled using ASYNC and the serial clock signal, allowing the device to easily interface with microprocessors or DSPs. The input signal is sampled on the falling edge of ASYNC and conversion is also initiated at this point. There are no pipeline delays associated with the ADC. By setting the relevant bits in the control register, the analog input range for the ADC can be selected to be a 0 V to VREFA input or a 0 V to 2 × VREFA with either straight binary or twos complement output coding. The conversion time is determined by the ASCLK frequency because it is also used as the master clock to control the conversion.
The DAC section of the AD5590 comprises sixteen 12-bit DACs divided into two groups of eight. Each group has an on-chip reference. The on-board references are off at power-up, allowing the use of external references. The internal references are enabled via a software write.
The AD5590 incorporates a power-on reset circuit that ensures that the DAC outputs power up to 0 V and remain powered up at this level until a valid write takes place. The DAC contains a power-down feature that reduces the current consumption of the device and provides software-selectable output loads while in power-down mode for any or all DAC channels. The outputs of all DACs can be updated simultaneously using the LDAC function, with the added functionality of user-selectable DAC channels to simultaneously update. There is also an asynchronous CLR that updates all DACs to a user-programmable code: zero scale, midscale, or full scale.
The AD5590 contains eight low noise, single-supply amplifiers. These amplifiers can be used for signal conditioning for the ADCs, DACs, or other independent circuitry, if required.
**Applications**
Optical Line Cards (Monitoring and Control)
Base Stations
General Purpose Analog I/O
Monitoring and control
### Features and Benefits
INPUT CHANNELS
12-bit successive approximation ADC
16 inputs with sequencer
Fast throughput rate: 1 MSPS
Wide input bandwidth: 70 dB SNR at fIN = 50 kHz
OUTPUT CHANNELS
16 outputs with 12-bit DACs
On-chip 2.5 V reference
Hardware LDAC and LDAC override function
Rail-to-rail operation
Operational amplifiers
Offset voltage: 2.2 mV maximum
Low input bias current: 1 pA maximum
Single supply operation
Low noise: 22 nV/√Hz
Unity gain stable
Flexible serial interface SPI-/QSPI-/MICROWIRE-/DSP-compatible
See Datasheet for additional features
