AD7401 - ADI

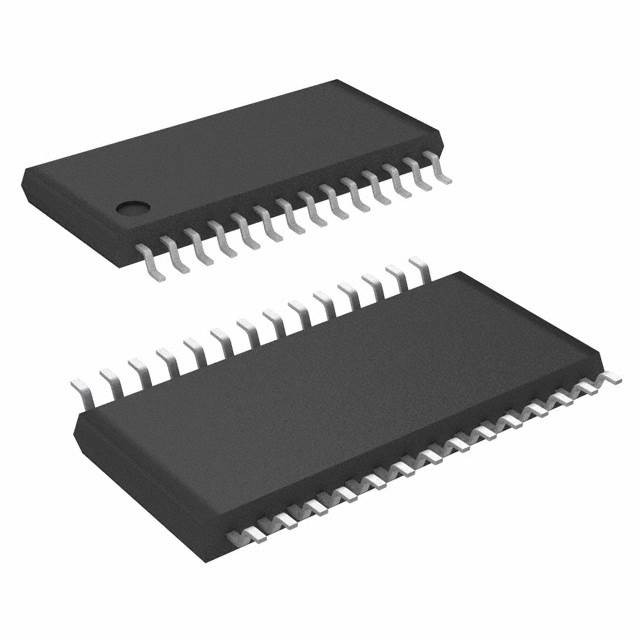

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD7401
Manufacturer

ADI
ChipWorker Part#

CW389444757
Description

Isolated Sigma-Delta Modulator (Up to 20MHz Data Rate)
Documentation

Datasheet

AD7401 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD7401 Specifications

Attribute	Attribute Value

Part Number	AD7401
Manufacturer	ADI
ChipWorker Part#	CW389444757
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Product Description

GENERAL DESCRIPTION

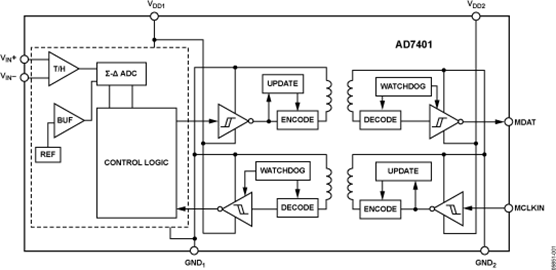

The AD74011 is a second-order, Σ-Δ modulator that converts an analog input signal into a high speed, 1-bit data stream with on-chip digital isolation based on Analog Devices, Inc. iCoupler® technology. The AD7401 operates from a 5 V power supply and accepts a differential input signal of ±200 mV (±320 mV full scale). The analog input is continuously sampled by the analog modulator, eliminating the need for external sample-and-hold circuitry.
FEATURES
20 MHz maximum external clock rate
Second-order modulator
16 bits no missing codes
±2 LSB INL typical at 16 bits
3.5 μV/°C maximum offset drift
On-board digital isolator
On-board reference
Low power operation: 20 mA maximum at 5.25 V
−40°C to +105°C operating range
16-lead SOIC package
AD7400, internal clock version
Safety and regulatory approvals
UL recognition
3750 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
VDE Certificate of Conformity
DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01
DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000
VIORM= 891 V peak
APPLICATIONS
AC motor controls
Data acquisition systems
A/D + opto-isolator replacements
