AD8571ARZ - ADI
The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoAD8571ARZ
-
ManufacturerADI
-
ChipWorker Part#CW388444
-
CategoryOperational Amplifier, OP Amp IC
-

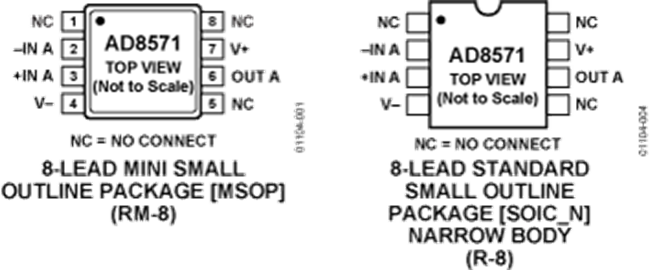

PackageSOIC-8
-
DescriptionANALOG DEVICES AD8571ARZ Operational Amplifier, Single, 1 Amplifier, 1.5MHz, 0.4V/µs, 2.7V to 5V, SOIC, 8Pins
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
AD8571ARZ Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
AD8571ARZ Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | AD8571ARZ |
| Manufacturer | ADI |
| ChipWorker Part# | CW388444 |
| Category | Operational Amplifier, OP Amp IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 5.00 V |
| Output Current | 30mA @5V |
| Supply Current | 850 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 120 dB |
| Bandwidth | 1.5 MHz |
| Slew Rate | 400 mV/μs |
| Gain Bandwidth Product | 1.5 MHz |
| Input Impedance | 1.00 TΩ |
| Gain | 130 dB |
| Input Offset Voltage | 1 µV |
| Input Bias Current | 10 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 120 dB |
| Minimum CMRR Range | 120 dB |
| Supply Voltage | 2.7V ~ 5V |
| expand all | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
Product Description
- The AD8571ARZ is a zero-drift single Operational Amplifier with rail-to-rail input/output swings. The AD8571 provide benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using a spread-spectrum, auto-zero technique, the AD8571 eliminate the intermodulation effects from interaction of the chopping function with the signal frequency in AC applications. With an offset voltage of only 1µV and drift of 0.005µV/°C, the AD8571 is perfectly suited for applications where error sources cannot be tolerated. Position and pressure sensors and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range.
- High accuracy
- No external capacitors required
- 145dB Typical high gain
- 140dB Typical CMRR
- 130dB Typical PSRR
- 10pA Typical ultralow input bias current
- 750µA/amplifier Low supply current
