AD96687BRZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD96687BRZ
Manufacturer

ADI
ChipWorker Part#

CW188361
Category

Comparator, Analog Comparator IC
Package

SOIC-16
Description

ANALOG DEVICES AD96687BRZ Analogue Comparator, Dual, High Speed, 2, 2.5ns, 5V, -5.2V, SOIC, 16Pins
Documentation

Datasheet

AD96687BRZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD96687BRZ Specifications

Attribute	Attribute Value

Part Number	AD96687BRZ
Manufacturer	ADI
ChipWorker Part#	CW188361
Category	Comparator, Analog Comparator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Output Current	30 mA
Supply Current	18 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Power Dissipation	240 mW
Common Mode Rejection Ratio	90 dB
Input Offset Voltage	2 mV
Input Bias Current	10000 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	5V ~ 5.2V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

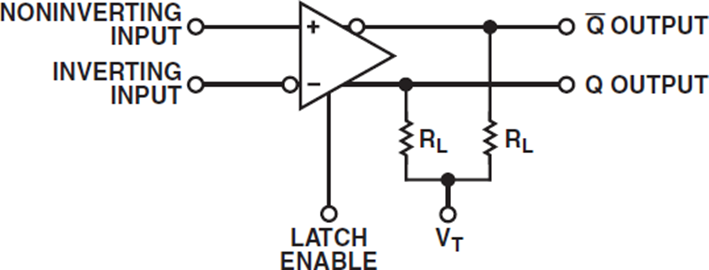

The AD96687BRZ is an ultrafast dual Voltage Comparator with 2.5ns propagation delay, the AD96687 is an equally fast dual comparator. This device features 50ps propagation delay dispersion which is a particularly important characteristic of high-speed comparators. It is a measure of the difference in propagation delay under differing overdrive conditions. A fast, high precision differential input stage permits consistent propagation delay with a wide variety of signals in the common-mode range from -2.5 to 5V. Outputs are complementary digital signals fully compatible with ECL 10K and 10KH logic families. The outputs provide sufficient drive current to directly drive transmission lines terminated in 50R to -2V. A level sensitive latch input which permits tracking, track-hold or sample-hold modes of operation is included.
Low power - 118mW per comparator
ECL Logic compatibility
