AN7523N - Panasonic

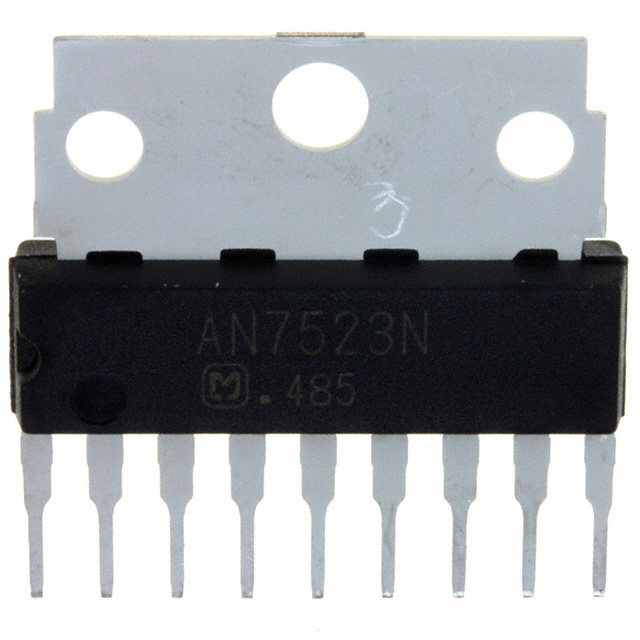

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AN7523N
Manufacturer

Panasonic
ChipWorker Part#

CW184430677
Category

Audio Amplifier IC
Package

HSIP-9
Description

Audio Amp Speaker 1CH Mono 4W Class-AB 9Pin(9+Tab) SIP
Documentation

Datasheet

AN7523N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AN7523N Specifications

Attribute	Attribute Value

Part Number	AN7523N
Manufacturer	Panasonic
ChipWorker Part#	CW184430677
Category	Audio Amplifier IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	9 Pin
Case/Package	HSIP-9
Number of Circuits	1 Circuit
Quiescent Current	20.0 mA
Supply Voltage	3.5V ~ 13.5V
	expand all
Operating Temperature	-25℃ ~ 70℃ (TA)
Product Lifecycle Status	Unknown
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Amplifier IC 1-Channel (Mono) Class AB 9-HSIP
