BAJ0CC0T - ROHM Semiconductor

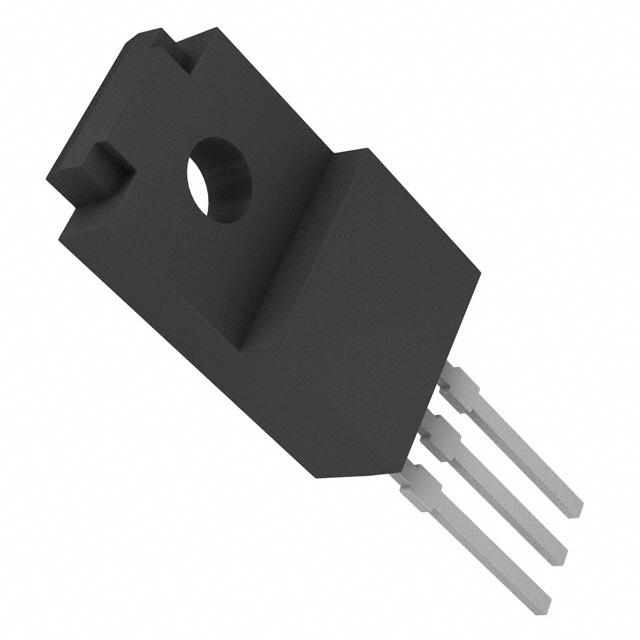

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BAJ0CC0T
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW35680978
Category

Voltage Regulator
Package

TO-220-3
Description

Fixed LDO Voltage Regulator, 4V to 25V, 300mV Dropout, 10Vout, 1Aout, TO-220FP-3
Documentation

Datasheet

BAJ0CC0T Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BAJ0CC0T Specifications

Attribute	Attribute Value

Part Number	BAJ0CC0T
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW35680978
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Outputs	1 Output
Input Voltage (DC)	35.0V (max)
Output Voltage	10 V
Output Current	1 A
Number of Positions	3 Position
Power Dissipation	2 W
voltage rating	0.3V @500mA
Input Voltage (Max)	25 V
Input Voltage (Min)	4 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2000 mW
Accuracy	±2 %
Input Voltage	≤25 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

●General Description
Standard Fixed Output LDO Regulators are low-saturation regulators, available for output s up to 2A / 1A. ROHM has a wide output voltage range and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the IC.
●Features
±1% highly accurate output voltage (BAxxDD0xx)
Low saturation with PNP output
Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges
●Key Specification
Input Power Supply Voltage: 25V (Max.)
Output voltage type: Fixed
Output current: BAxxDD0xx series 2A (Max.)
BAxxCC0xx series 1A (Max.)
Shutdown current: 0μA(Typ.)
Operating temperature range: -40℃ to +125℃
●Applications
Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
