BQ2002D - TI

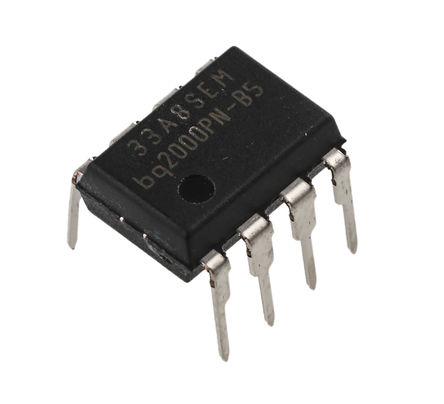

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

42 points

Part No

BQ2002D
Manufacturer

TI
ChipWorker Part#

CW355899313
Package

SOIC-8
Description

The bq2002D/T Fast-Charge IC are low-cost CMOS battery-charge controllers able to provide reliable charge termination...
Documentation

Datasheet
Ships from

Moscow
Наличие

14991 pcs In Stock
Estimated Price

Price on Request

Buy BQ2002D

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BQ2002D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BQ2002D Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BQ2002D
Manufacturer	TI
ChipWorker Part#	CW355899313
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SOIC-8
	expand all
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The bq2002D/T Fast-Charge IC are low-cost CMOS battery-charge controllers able to provide reliable charge termination for both NiCd and NiMH battery applications. Controlling a current-limited or constant-current supply allows the bq2002D/T to be the basis for a cost-effective stand-alone or system-integrated charger. The bq2002D/T integrates fast charge with optional top-off and pulsed-trickle control in a single IC for charging one or more NiCd or NiMH battery cells.
Fast charge is initiated on application of the charging supply or battery replacement. For safety, fast charge is inhibited if the battery temperature and voltage are outside configured limits.
Fast charge is terminated by any of the following:
Rate of temperature rise
Maximum voltage
Maximum temperature
Maximum time
After fast charge, the bq2002T optionally tops-off and pulse-trickles the battery per the pre-configured limits. Fast charge may be inhibited using the INH pin. The bq2002D/T may be placed in low-standby-power mode to reduce system power consumption.
Fast charge of nickel cadmium or nickel-metal hydride batteries
Direct LED output displays charge status
Fast-charge termination by rate of rise of temperature, maximum voltage, maximum
temperature, and maximum time
Internal band-gap voltage reference
Optional top-off charge (bq2002T only)
Selectable pulse-trickle charge rates (bq2002T only)
Low-power mode
8-pin 300-mil DIP or 150-mil SOIC
