BTS5020-2EKA ,Power Management IC - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

58 points

Part No

BTS5020-2EKA
Manufacturer

Infineon
ChipWorker Part#

CW14808635
Category

Power Management IC
Package

PG-DSO-14
Description

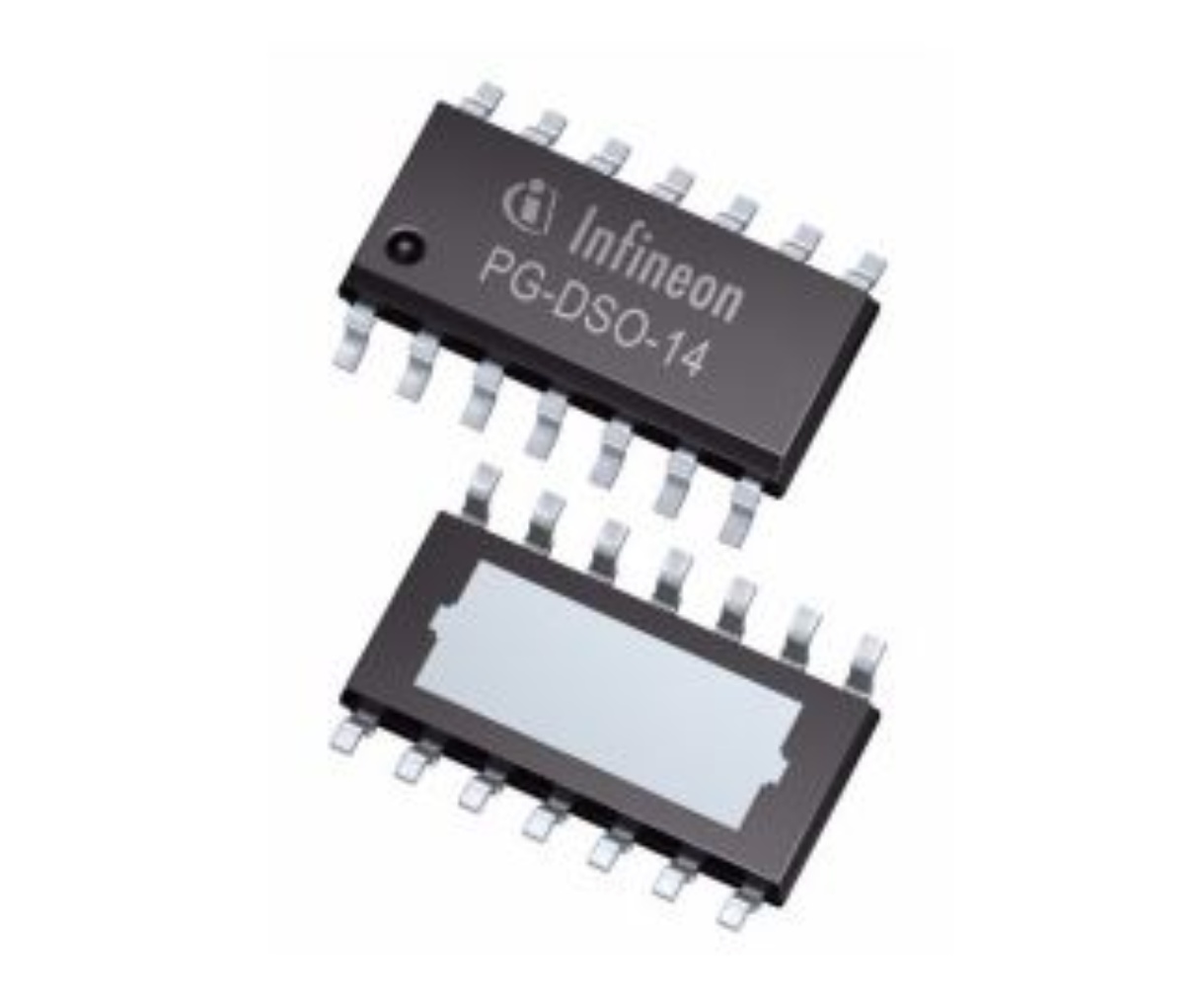

INFINEON BTS5020-2EKA Power Load Switch, Smart6 Technology, High Side, 2Outputs, 28V, 32A, SOIC-14
Documentation

Datasheet
Ships from

Moscow
Наличие

90 pcs In Stock
Estimated Price

$ 0.66

Buy BTS5020-2EKA

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BTS5020-2EKA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BTS5020-2EKA Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BTS5020-2EKA
Manufacturer	Infineon
ChipWorker Part#	CW14808635
Category	Power Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	PG-DSO-14
Power Rating	2.2 W
Number of Outputs	2 Output
Input Voltage (DC)	28.0 V
Output Current	5 A
Supply Current	5 mA
Number of Positions	14 Position
Power Dissipation	2200 mW
Output Current (Max)	5 A
Output Current (Min)	7 A
Number of Inputs	2 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2200 mW
Supply Voltage	8V ~ 18V
Supply Voltage (Max)	28 V
Supply Voltage (Min)	5 V
Input Voltage	28 V
	expand all
Size-Length	8.65 mm
Size-Width	3.9 mm
Size-Height	1.47 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Description:
The BTS5020-2EKA is a 20 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-DSO-14-40 EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to 2P27W/P21W + R5W, as well as LEDs in the harsh automotive environment.
Summary of Features:
Two channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground independent from load ground
Very low power DMOS leakage current in OFF state
Green product (RoHS compliant)
AEC qualified
