CC2530DK - TI

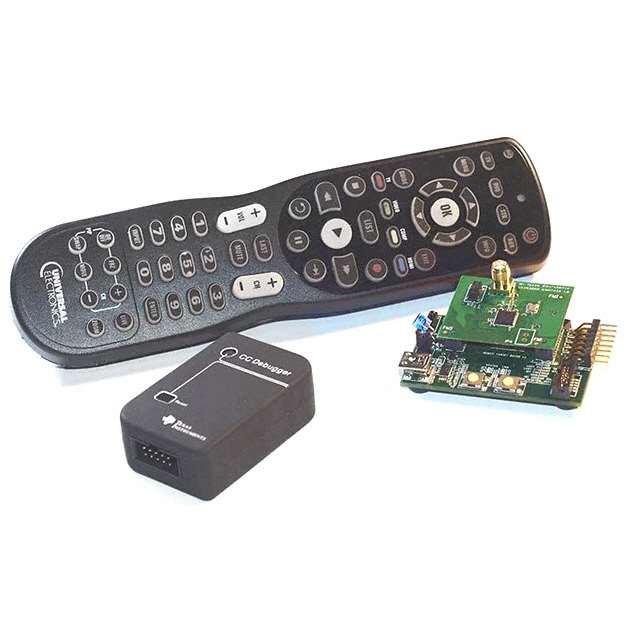

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CC2530DK
Manufacturer

TI
ChipWorker Part#

CW75726728
Category

Evaluation, Development Kit
Description

Development Kit, CC2530 2.4GHz IEEE 802.15.4 Compliant SoC, USB Interface Dongle
Documentation

Datasheet

CC2530DK Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CC2530DK Specifications

Attribute	Attribute Value

Part Number	CC2530DK
Manufacturer	TI
ChipWorker Part#	CW75726728
Category	Evaluation, Development Kit
Documentation	Datasheet
Frequency	2.4 GHz
	expand all
Product Lifecycle Status	Unknown
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	5A002.a.1.a
HK STC License	NLR

Product Description

CC2530DK development kit supports TI"s second generation 2.4GHz IEEE 802.15.4 compliant System-on-Chip, the CC2530 and contains all hardware, software and tools necessary to build the 802.15.4-compliant product. The CC2530DK includes CC2530 based evaluation modules, development boards, a USB interface dongle, cables, antennas and documentation. CC2530EM evaluation modules can be plugged into SmartRF05EB boards, which are included in the Development Kit. The evaluation modules can be used as reference module for prototyping and for verifying the performance of the CC2530 RF IC. The CC2530DK comes with various software examples including the IEEE 802.15.4 compliant TIMAC, ZigBee compliant Z-Stack, proprietary SimpliciTI networking protocol, packet error rate tests, simple link tests, USB firmware libraries and examples for the CC2531
2.4GHz IEEE 802.15.4 compliant System-on-Chip
Can be used as a reference module for prototyping and for verifying the performance of CC2530 RF IC
SmartRF05EB+CC2530EM or CC2531USB stick can be used as capture device for SmartRF Packet Sniffer
supported by the IAR EW8051 C-compiler, which is used with the TIMAC, ZStack, SimpliciTI etc
The Smart RF05EB evaluation board is the main board in the kit with a wide range of user interfaces
The CC2531 USB Dongle is a fully operational USB device that can be plugged into a PC
2.4GHz antenna Titanis from Antenova
The dongle comes pre-programmed with firmware such that it can be used as a packet sniffer device
The CC2530EM contains the RF IC and external components and matching filters
Battery monitor and temperature sensor
