CC2560ARVMT ,Interface IC, Interface Controller - TI

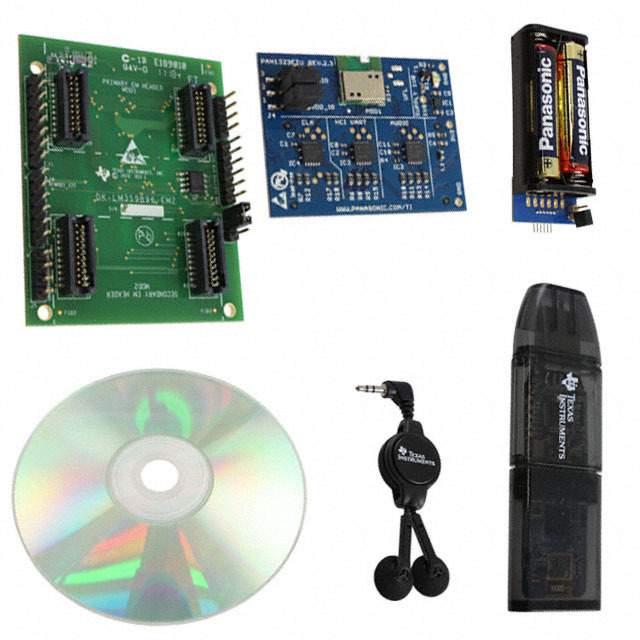

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

84 points

Part No

CC2560ARVMT
Manufacturer

TI
ChipWorker Part#

CW44338451
Category

Interface IC, Interface Controller
Package

VQFN-76
Description

Bluetooth 4Mbps 76Pin VQFN EP T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.01

Buy CC2560ARVMT

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

CC2560ARVMT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

CC2560ARVMT Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	CC2560ARVMT
Manufacturer	TI
ChipWorker Part#	CW44338451
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	76 Pin
Case/Package	VQFN-76
Frequency	2.4 GHz
Supply Voltage (DC)	2.20V (min)
Number of Positions	76 Position
Data Rate	4.00 Mbps
Output Power	12 dBm
Standby Current	40.0 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.2V ~ 4.8V
Supply Voltage (Max)	4.8 V
Supply Voltage (Min)	2.2 V
	expand all
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	5A992C
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

* Single-Chip _Bluetooth_ Solution Integrating _Bluetooth_ Basic Rate (BR)/Enhanced Data Rate (EDR)/ Low Energy (LE) Features Fully Compliant with the _Bluetooth_ 4.0 Specification Up to the HCI Layer * BR/EDR Features Include: * Up to 7 Active Devices * Scatternet: Up to 3 Piconets Simultaneously, 1 as Master and 2 as Slaves * Up to 2 SCO Links on the Same Piconet * Support for All Voice Air-Coding – Continuously Variable Slope Delta (CVSD), A-Law, µ-Law, and Transparent (Uncoded) * CC2560B/CC2564B Devices Provide an Assisted Mode for HFP 1.6 Wideband Speech (WBS) Profile or A2DP Profile to Reduce Host Processing and Power * LE Features Include: * Support of Up to 10 (CC2564 and CC2564B) Simultaneous Connections * Multiple Sniff Instances Tightly Coupled to Achieve Minimum Power Consumption * Independent Buffering for LE Allows Large Numbers of Multiple Connections without Affecting BR/EDR Performance. * Built-In Coexistence and Prioritization Handling for BR/EDR and LE * Flexibility for Easy Stack Integration and Validation Into Various Microcontrollers, Such as MSP430™ and ARM® Cortex™-M3 and Cortex™-M4 MCUs * Highly Optimized for Low-Cost Designs: * Single-Ended 50-Ω RF Interface * Package Footprint: 76 Terminals, 0.6-mm Pitch, 8.10-mm × 8.10-mm mrQFN * Best-in-Class _Bluetooth_ (RF) Performance (TX Power, RX Sensitivity, Blocking) * Class 1.5 TX Power Up to +12 dBm * Internal Temperature Detection and Compensation to Ensure Minimal Variation in RF Performance Over Temperature, No External Calibration Required * Improved Adaptive Frequency Hopping (AFH) Algorithm with Minimum Adaptation Time * Provides Longer Range, Including 2xRange Over Other BLE-Only Solutions * ROM Spin to Enable Offload Host and Save Current with Assisted Audio (SBC Encode and Decode On Chip) * Advanced Power Management for Extended Battery Life and Ease of Design: * On-Chip Power Management, Including Direct Connection to Battery * Low Power Consumption for Active, Standby, and Scan _Bluetooth_ Modes * Shutdown and Sleep Modes to Minimize Power Consumption * Physical Interface: * Fully Programmable Digital PCM-I2S Codec Interface * CC256x Hardware Evaluation Tool: PC-Based Application to Evaluate RF Performance of the Device and Configure Service Pack * Device Terminal-to-Terminal Compatible with Previous Devices or Modules
