CD4556BE ,Logic Controller, Logic IC - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

161 points

Part No

CD4556BE
Manufacturer

TI
ChipWorker Part#

CW8061666
Category

Logic Controller, Logic IC
Package

DIP-16
Description

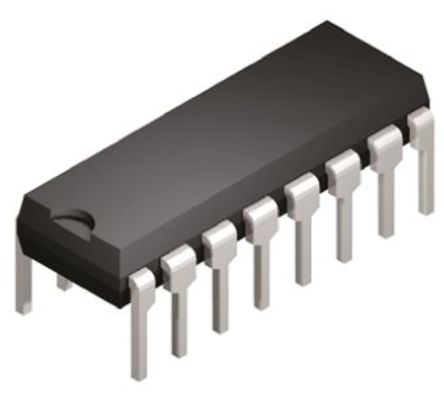

TEXAS INSTRUMENTS CD4556BE Decoder / Demultiplexer, 4 Output, 6.8mA, 3V to 18V, DIP-16
Documentation

Datasheet
Ships from

Moscow
Наличие

281641 pcs In Stock
Estimated Price

$ 0.14

Buy CD4556BE

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

CD4556BE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

CD4556BE Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	CD4556BE
Manufacturer	TI
ChipWorker Part#	CW8061666
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	3.00V (min)
Number of Outputs	4 Output
Contacts Type	DP4T
Number of Circuits	2 Circuit
Number of Positions	16 Position
Voltage Nodes	5.00 V, 10.0 V, 15.0 V
Power Dissipation	500 mW
Input Capacitance	5.00 pF
Bandwidth	8.00 MHz
Output Current (Max)	6.8 mA
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	19.69 mm
Size-Width	6.6 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The CD4556BE is a CMOS dual binary to 1-of-4 Decoder/Demultiplexer with outputs low on select. Each decoder has two select inputs (A and B), an Enable input (E\\) and four mutually exclusive outputs. On the CD4556B the outputs are low on select. When the enable input is high, the outputs of the decoder/demultiplexer remain high regardless of the state of the select inputs A and B.
