CD74HC595E ,Shift Register IC - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

134 points

Part No

CD74HC595E
Manufacturer

TI
ChipWorker Part#

CW5583665
Category

Shift Register IC
Package

PDIP-16
Description

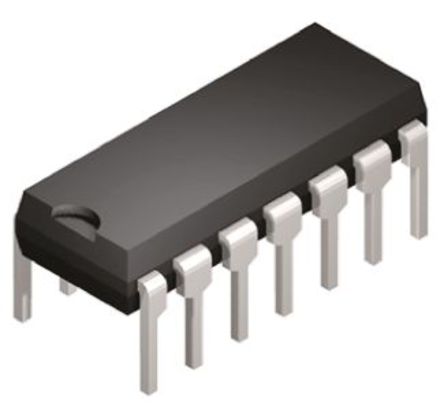

TEXAS INSTRUMENTS CD74HC595E Shift Register, HC Family, 74HC595, Serial to Parallel, 1Element, 8Bit, DIP, 16Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.37

Buy CD74HC595E

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

CD74HC595E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

CD74HC595E Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	CD74HC595E
Manufacturer	TI
ChipWorker Part#	CW5583665
Category	Shift Register IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Frequency	42 MHz
Supply Voltage (DC)	2.00V ~ 6.00V
Number of Outputs	9 Output
Number of Circuits	16 Circuit
Number of Positions	16 Position
Number of Bits	8 Bit
Propagation Delay Max (tpd)	32.0 ns
Voltage Nodes	6.00 V, 5.00 V, 2.00 V
Output Current Drive	-1.00 mA
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	19.69 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The CD74HC595E is a 8-bit Shift Register with 3-state output registers. It contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift and storage registers. The shift register has a direct overriding clear (SRCLR\\) input, serial (SER) input and serial output for cascading. When the OE\ input is high, the outputs are in the high-impedance state. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered. If both clocks are connected together, the shift register always is one clock pulse ahead of the storage register.
High-current 3-state outputs can drive up to 15 LSTTL loads
Shift register has direct clear
Typical tpd = 14ns
±6mA Output drive at 5V
1µA Maximum low input current
80µA Maximum low power consumption
