CSD16407Q5 - TI

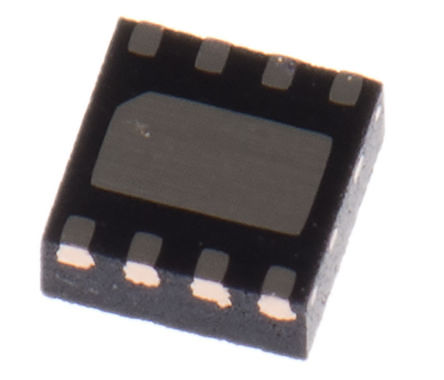

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CSD16407Q5
Manufacturer

TI
ChipWorker Part#

CW8595238
Category

MOSFET, MOSFET Transistor
Package

VSON-Clip-8
Description

SON N-CH 25V 31A
Documentation

Datasheet

CSD16407Q5 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CSD16407Q5 Specifications

Attribute	Attribute Value

Part Number	CSD16407Q5
Manufacturer	TI
ChipWorker Part#	CW8595238
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON-Clip-8
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	1.8 mΩ
Polarity	N-Channel
Power Dissipation	3.1 W
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	25 V
Continuous Drain Current (Ids)	100 A
Rise Time	18.4 ns
Input Capacitance (Ciss)	2660pF @12.5V(Vds)
Input Power (Max)	3.1 W
Fall Time	9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.1W (Ta)
	expand all
Size-Length	6.1 mm
Size-Width	5.1 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
Ultralow Qg and Qgd
Low Thermal Resistance
Avalanche Rated
SON 5-mm × 6-mm Plastic Package
APPLICATIONS
Point-of-Load Synchronous Buck Converter for Applications in
Networking, Telecom and Computing Systems
Optimized for Synchronous FET Applications
NexFET is a trademark of Texas Instruments.
