DB2731600L ,Schottky Diode - Panasonic

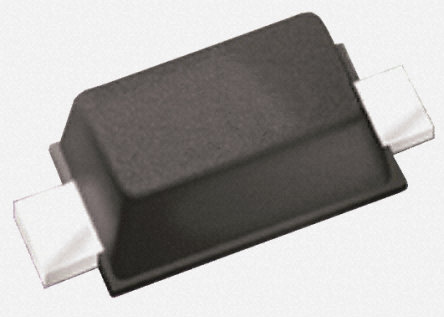

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

91 points

Part No

DB2731600L
Manufacturer

Panasonic
ChipWorker Part#

CW24090407
Category

Schottky Diode
Package

SSSMini2-F4-B
Description

DB2731600L, SMT Schottky Small Signal Diode, 30V 100mA, 0.8ns, 2Pin SSSMini2 F4 B
Documentation

Datasheet
Ships from

Moscow
Наличие

126185 pcs In Stock
Estimated Price

$ 0.02

Buy DB2731600L

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

DB2731600L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

DB2731600L Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	DB2731600L
Manufacturer	Panasonic
ChipWorker Part#	CW24090407
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SSSMini2-F4-B
Number of Positions	2 Position
Forward Voltage	0.55 V
Reverse recovery time	0.8 ns
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	550 mV
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	125℃ (Max)
	expand all
Size-Length	1 mm
Size-Width	0.6 mm
Size-Height	0.52 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The DB2731600L is a silicon epitaxial planar Schottky Barrier Diode suitable for small current rectification.
Short reverse recovery time trr
Low forward-voltage VF
Halogen-free
MSL 1 Compliant
UL94V-0 Flammability rating
