DV4114N - EBM-Papst

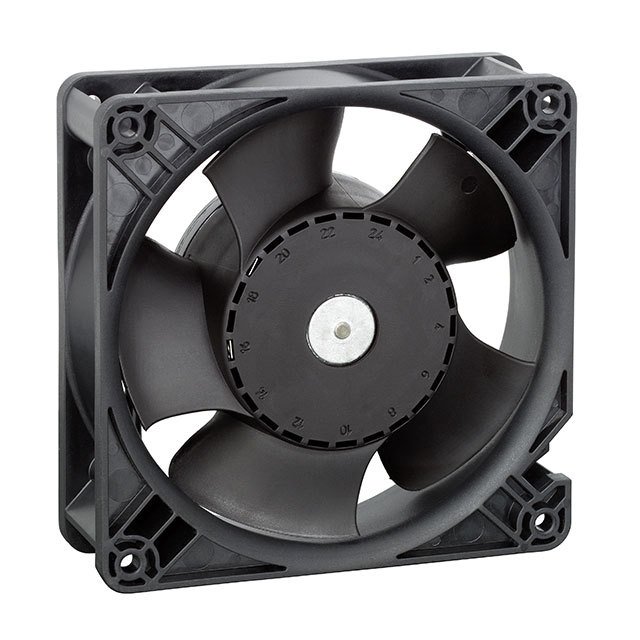

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DV4114N
Manufacturer

EBM-Papst
ChipWorker Part#

CW40549067
Category

Fan, Blower, Fan Cooler
Package

Axial
Description

DC Fan Axial Ball Bearing 24V 16V to 30V 161.9CFM 61dB 119 X 119 X 38mm
Documentation

Datasheet

DV4114N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DV4114N Specifications

Attribute	Attribute Value

Part Number	DV4114N
Manufacturer	EBM-Papst
ChipWorker Part#	CW40549067
Category	Fan, Blower, Fan Cooler
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	Axial
Supply Voltage (DC)	24.0 V
Voltage Rating (DC)	24.0 V
Power Rating	20.5 W
Input Voltage (DC)	24.0 V
Power Consumption	20.5 W
Operating Temperature (Max)	65 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	24 V
Supply Voltage	24 V
	expand all
Size-Length	119 mm
Size-Width	119 mm
Size-Height	119 mm
Lead Length	310 mm
Material	Plastic
Weight	375.12 g
Operating Temperature	-20℃ ~ 65℃
Product Lifecycle Status	Active
Packaging	Box
Life (Hours)	70000h @40℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8414596090
ECCN Code	EAR99

Product Description

Plastic fan housing, impeller of fiberglass reinforced plastic (PA). Electronically commutated external rotor motor. Counterclockwise rotation viewed from rotor, air output over struts. Electrical connection via 2 leads AWG 22, TR 64, 12.2 In. (310 mm). Ball bearing.*Mass:** 16 Oz. (390 g).
**Features:**
* Electronics Protected Against Reverse Polarity, Blocking and Overloading of the Fan
* Air Exhaust Over Struts
* Electrical Connection Via Four Leads, AWG 22, 310 mm Long
* Speed-Proportional Rectangular Pulse for External Speed Monitoring of Fan Motor with Two Pulses Per Revolution

expand all
