EL814 ,Optocoupler, Optoisolator - Everlight Electronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

97 points

Part No

EL814
Manufacturer

Everlight Electronics
ChipWorker Part#

CW2519004
Category

Optocoupler, Optoisolator
Package

DIP-4
Description

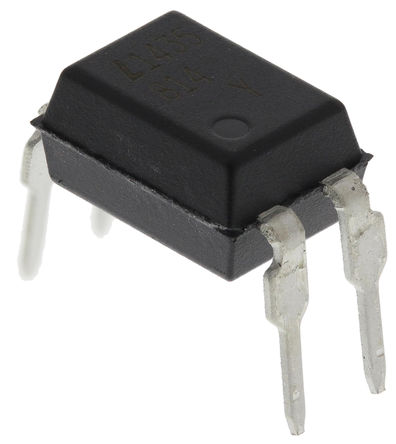

4Pin DIP PHOTOTRANSISTOR AC INPUT PHOTOCOUPLER
Documentation

Datasheet
Ships from

Moscow
Наличие

676 pcs In Stock
Estimated Price

$ 0.05

Buy EL814

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

EL814 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

EL814 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	EL814
Manufacturer	Everlight Electronics
ChipWorker Part#	CW2519004
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Rise/Fall Time	7µs, 11µs
Number of Channels	1 Channel
Forward Voltage	1.2 V
Input Current	60 mA
Power Dissipation	200 mW
Rise Time	7 µs
Isolation Voltage	5000 Vrms
Forward Current	60 mA
Output Voltage (Max)	80 V
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	60 mA
Fall Time	11 µs
Fall Time (Max)	18 µs
Fall Time (Max)	18 µs
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	expand all
Size-Width	4.58 mm
Operating Temperature	-55℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Description
The EL814 series of devices each consist of two infrared emitting diodes, connected in inverse parallel, optically coupled to a phototransistor detector.
They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.
