FC6943010R - Panasonic

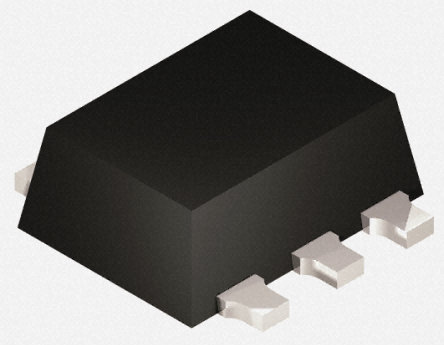

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FC6943010R
Manufacturer

Panasonic
ChipWorker Part#

CW34763242
Category

MOSFET, MOSFET Transistor
Package

SSMini6-F3-B
Description

SSMini6-F3-B N-CH 30V 0.1A
Documentation

Datasheet

FC6943010R Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FC6943010R Specifications

Attribute	Attribute Value

Part Number	FC6943010R
Manufacturer	Panasonic
ChipWorker Part#	CW34763242
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SSMini6-F3-B
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	2 Ω
Polarity	Dual N-Channel
Power Dissipation	125 mW
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	0.1A
Input Capacitance (Ciss)	12pF @3V(Vds)
Input Power (Max)	125 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	125 mW
	expand all
Size-Length	1.6 mm
Size-Width	1.2 mm
Size-Height	0.5 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Mosfet Array 2 N-Channel (Dual) 30V 100mA 125mW Surface Mount SSMini6-F3-B
