FOD3120 ,Optocoupler, Optoisolator - Fairchild

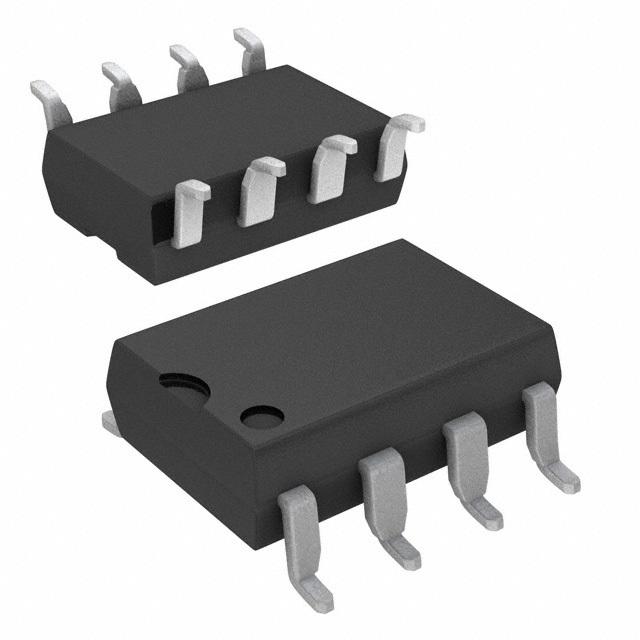

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

132 points

Part No

FOD3120
Manufacturer

Fairchild
ChipWorker Part#

CW7052668
Category

Optocoupler, Optoisolator
Package

DIP-8
Description

Optocoupler Drive Push-Pull 1CH 30V 2000V 8Pin PDIP White Bulk
Documentation

Datasheet
Ships from

Moscow
Наличие

5162 pcs In Stock
Estimated Price

$ 1.02

Buy FOD3120

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

FOD3120 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

FOD3120 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	FOD3120
Manufacturer	Fairchild
ChipWorker Part#	CW7052668
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Rise/Fall Time	60 ns
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.5 V
Input Current	16.0 mA
Power Dissipation	0.25 W
Rise Time	60 ns
Isolation Voltage	5000 Vrms
Forward Current	25 mA
Input Current (Min)	25 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.8 V
Forward Current (Max)	25 mA
Fall Time	0.06 µs
Fall Time (Max)	60 ns
Fall Time (Max)	60 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Supply Voltage	15V ~ 30V
	expand all
Size-Width	6.86 mm
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

Description
The FOD3120 is a 2.5A Output Current Gate Drive Optocoupler, capable of driving most 1200V/20A IGBT/MOSFET. It is ideally suited for fast switching driving of power IGBT and MOSFETs used in motor control inverter applications, and high performance power system.
Features
■High noise immunity characterized by 35kV/µs minimum common mode rejection
■2.5A peak output current driving capability for most 1200V/20A IGBT
■Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail
■Wide supply voltage range from 15V to 30V
■Fast switching speed
– 400ns max. propagation delay
– 100ns max. pulse width distortion
■Under Voltage LockOut (UVLO) with hysteresis
■Extended industrial temperate range, -40°C to 100°C temperature range
■Safety and regulatory approved
– UL1577, 5000 VRMSfor 1 min.
– IEC60747-5-2
■RDS(ON)of 1Ω(typ.) offers lower power dissipation
■>8.0mm clearance and creepage distance (option ‘T’ or ‘TS’)
■1,414V Peak Working Insulation Voltage (VIORM)
Applications
■Industrial inverter
■Uninterruptible power supply
■Induction heating
■Isolated IGBT/Power MOSFET gate drive
