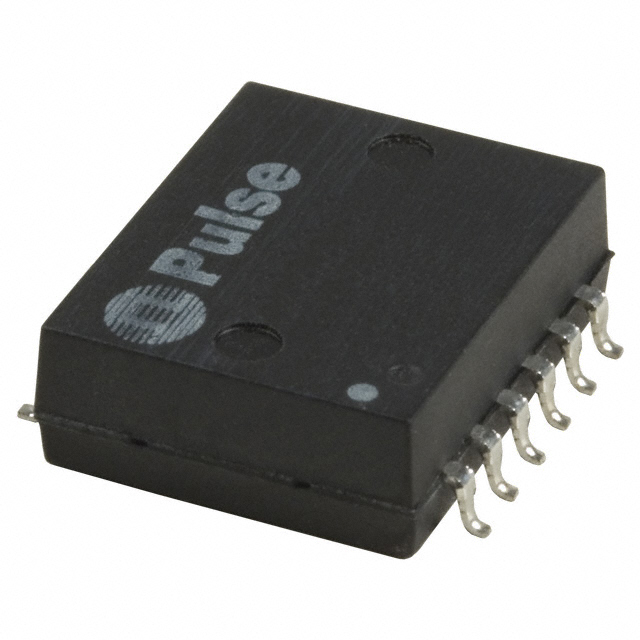

H1112NLT - Pulse Electronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

H1112NLT
Manufacturer

Pulse Electronics
ChipWorker Part#

CW10645336
Category

Transformer
Package

SMD
Description

Transformer: Ethernet; SMD; Trans: RX 1:1,TX 1:1; 1.2dB
Documentation

Datasheet

H1112NLT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

H1112NLT Specifications

Attribute	Attribute Value

Part Number	H1112NLT
Manufacturer	Pulse Electronics
ChipWorker Part#	CW10645336
Category	Transformer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	SMD
Number of Channels	1 Channel
Isolation Voltage	1500 Vrms
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	expand all
Size-Length	14.81 mm
Size-Width	14.73 mm
Size-Height	4.88 mm
Weight	1.71 g
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

H1112NLT is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. H1112NLT is described as XFRMR MODULE 1PORT 1:1 10/100. Perfect Parts is a supplier of Transformers and other Miscellaneous.
