HUF75545S3ST - Fairchild

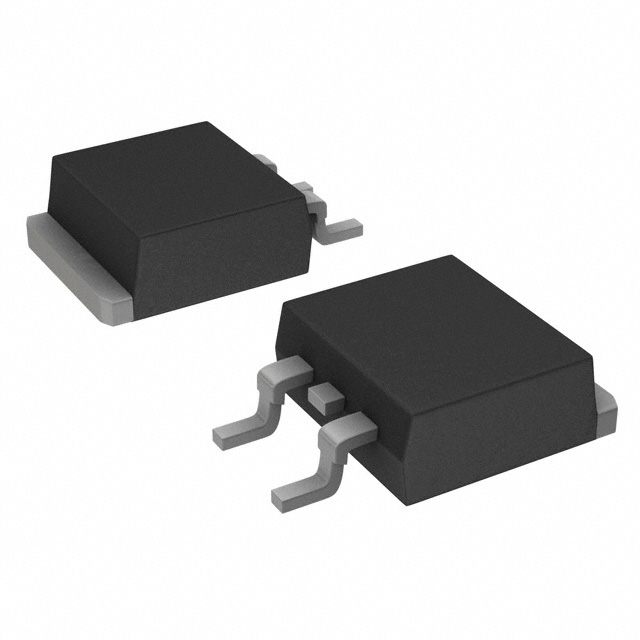

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HUF75545S3ST
Manufacturer

Fairchild
ChipWorker Part#

CW88501000
Category

MOSFET, MOSFET Transistor
Package

TO-263-3
Description

FAIRCHILD SEMICONDUCTOR HUF75545S3ST MOSFET Transistor, N Channel, 75A, 80V, 0.0082Ω, 10V, 4V
Documentation

Datasheet

HUF75545S3ST Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

HUF75545S3ST Specifications

Attribute	Attribute Value

Part Number	HUF75545S3ST
Manufacturer	Fairchild
ChipWorker Part#	CW88501000
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	80.0 V
Current Rating	75.0 A
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0082 Ω
Polarity	N-Channel
Power Dissipation	270 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	80 V
Breakdown Voltage (Drain to Source)	80.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	75.0 A
Rise Time	125 ns
Input Capacitance (Ciss)	3750pF @25V(Vds)
Input Power (Max)	270 W
Fall Time	90 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	270W (Tc)
	expand all
Size-Width	9.65 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
