IDH03SG60C - Infineon

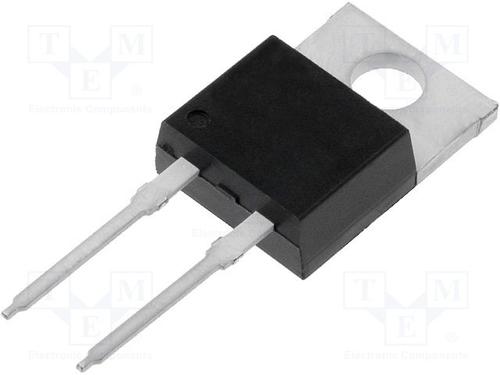

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IDH03SG60C
Manufacturer

Infineon
ChipWorker Part#

CW16646633
Category

Schottky Diode
Package

TO-220-2
Description

INFINEON IDH03SG60C Silicon Carbide Schottky Diode, SIC, thinQ 3G 600V Series, Single, 600V, 3A, 3.2NC, TO-220
Documentation

Datasheet

IDH03SG60C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IDH03SG60C Specifications

Attribute	Attribute Value

Part Number	IDH03SG60C
Manufacturer	Infineon
ChipWorker Part#	CW16646633
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Power Rating	38 W
Load Current	3 A
Power Dissipation	38 W
Reverse recovery time	10 ns
Forward Current	3 A
Max Forward Surge Current (Ifsm)	11.5 A
Maximum Forward Voltage (Max)	2.3 V
Forward Current (Max)	3 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
	expand all
Size-Length	10.2 mm
Size-Width	4.5 mm
Size-Height	15.95 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
