ILD206T - VISHAY

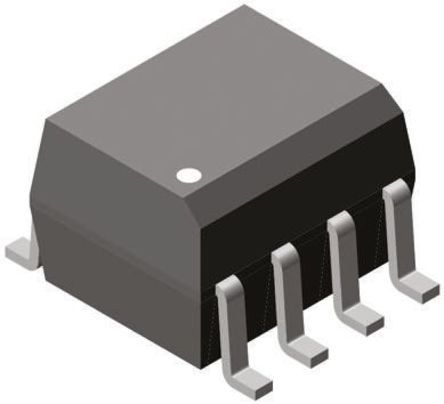

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ILD206T
Manufacturer

VISHAY
ChipWorker Part#

CW1982088
Category

Optocoupler, Optoisolator
Package

SOIC-8
Description

ILD206T Series Dual Channel 70V 4000Vrms Phototransistor Optocoupler - SOIC-8
Documentation

Datasheet

ILD206T Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ILD206T Specifications

Attribute	Attribute Value

Part Number	ILD206T
Manufacturer	VISHAY
ChipWorker Part#	CW1982088
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Voltage Rating (DC)	5.00 V
Rise/Fall Time	3μs, 4.7μs
Output Voltage	70.0 V
Number of Channels	2 Channel
Number of Positions	8 Position
Forward Voltage	1.2 V
Input Current	30 mA
Power Dissipation	0.3 W
Rise Time	0.005 ms
Isolation Voltage	4000 Vrms
Forward Current	30 mA
Output Voltage (Max)	70 V
Input Current (Min)	30 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.55 V
Forward Current (Max)	30 mA
Fall Time	0.004 ms
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	expand all
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

The ILD206T is a Phototransistor Output Optocoupler with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. It come in a standard SOIC-8A small outline package for surface mounting which makes it ideally suited for high density applications with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices.
