INA163UA - TI

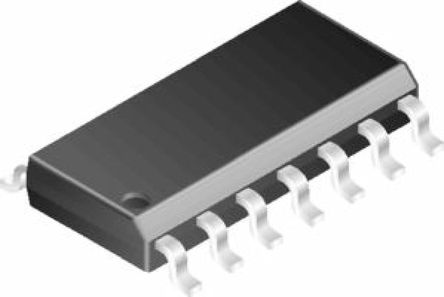

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoINA163UA
-
ManufacturerTI
-
ChipWorker Part#CW5050475
-
CategoryAmplifier, Buffer IC
-
PackageSOIC-14
-
DescriptionTEXAS INSTRUMENTS INA163UA Instrument Amplifier, 3 Amplifier, 250µV, 15V/µs, 800kHz, ± 4.5V to ± 18V, SOIC
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
INA163UA Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
INA163UA Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | INA163UA |
| Manufacturer | TI |
| ChipWorker Part# | CW5050475 |
| Category | Amplifier, Buffer IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | SOIC-14 |
| Supply Voltage (DC) | 36.0V (max) |
| Operating Voltage | 4.5V ~ 18V |
| Supply Current | 10 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 116 dB |
| Quiescent Current | 10.0 mA |
| Bandwidth | 800 kHz |
| Slew Rate | 15.0 V/μs |
| Gain Bandwidth Product | 800 kHz |
| Input Offset Voltage | 50 µV |
| Input Bias Current | 2 µA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 800 kHz |
| Minimum CMRR Range | 100 dB |
| expand all | |
| Size-Length | 8.75 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
Product Description
- The INA163 is a very low-noise, low-distortion, monolithic instrumentation amplifier. Its current-feedback circuitry achieves very wide bandwidth and excellent dynamic response over a wide range of gain. It is ideal for low-level audio signals such as balanced low-impedance microphones. Many industrial, instrumentation, and medical applications also benefit from its low noise and wide bandwidth.
- Unique distortion cancellation circuitry reduces distortion to extremely low levels, even in high gain. The INA163 provides near-theoretical noise performance for 200 source impedance. Its differential input, low noise, and low distortion provide superior performance in professional microphone amplifier applications.
- The INA163s wide supply voltage, excellent output voltage swing, and high output current drive allow its use in high-level audio stages as well.
- The INA163 is available in a space-saving SO-14 surface-mount package, specified for operation over the 40°C to +85°C temperature range.
