IPN70R1K5CE - Infineon

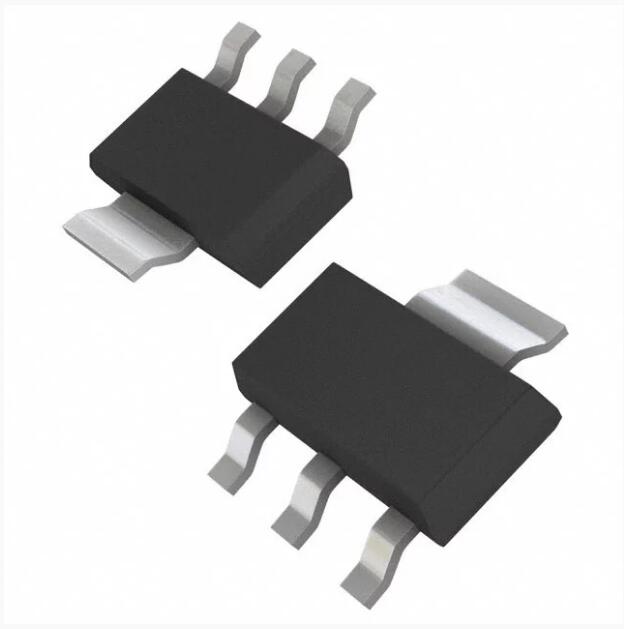

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPN70R1K5CE
Manufacturer

Infineon
ChipWorker Part#

CW80615240
Category

MOSFET, MOSFET Transistor
Package

SOT-223
Description

SOT-223 N-CH 700V 5.4A
Documentation

Datasheet

IPN70R1K5CE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPN70R1K5CE Specifications

Attribute	Attribute Value

Part Number	IPN70R1K5CE
Manufacturer	Infineon
ChipWorker Part#	CW80615240
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-223
Polarity	N-CH
Drain to Source Voltage (Vds)	700 V
Continuous Drain Current (Ids)	5.4A
Rise Time	5.9 ns
Input Capacitance (Ciss)	225pF @100V(Vds)
Fall Time	18.2 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5000 mW
	expand all
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

Summary of Features:
Drop-in replacement for DPAK at lower cost
Space savings in designs with low power dissipation
Comparable thermal behavior to DPAK
Target Applications:
Lighting
Adapter
Consumer
