IRF6604 - International Rectifier

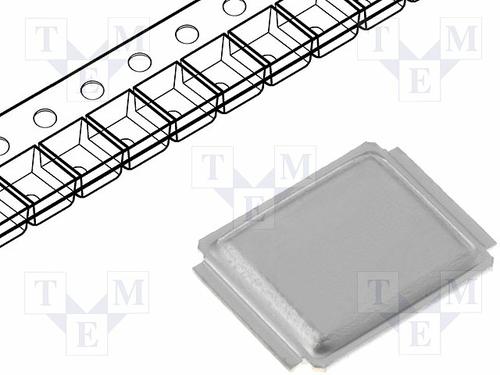

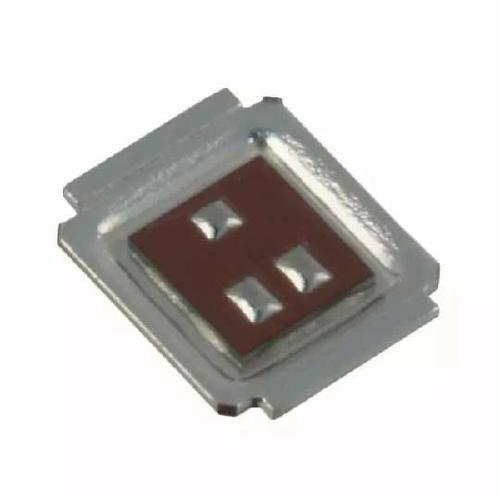

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF6604
Manufacturer

International Rectifier
ChipWorker Part#

CW364249422
Category

MOSFET, MOSFET Transistor
Package

DirectFET™ Isometric MQ
Description

MOSFET N-CH 30V 12A DIRECTFET
Documentation

Datasheet

IRF6604 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF6604 Specifications

Attribute	Attribute Value

Part Number	IRF6604
Manufacturer	International Rectifier
ChipWorker Part#	CW364249422
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Case/Package	DirectFET™ Isometric MQ
	expand all
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Description
The IRF6604 combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance charge product in a package that has the footprint of an SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques, when application note AN-1035 is followed regarding the manufacturing methods and process. The DirectFET package allows dual sided cooling to maximize thermal transfer in power systems, IMPROVING previous best thermal resistance by 80%.
• Application Specific MOSFETs
• Ideal for CPU Core DC-DC Converters
• Low Conduction Losses
• Low Switching Losses
• Low Profile (<0.7 mm)
• Dual Sided Cooling Compatible
• Compatible with existing Surface Mount Techniques
