IRFD014PBF - VISHAY

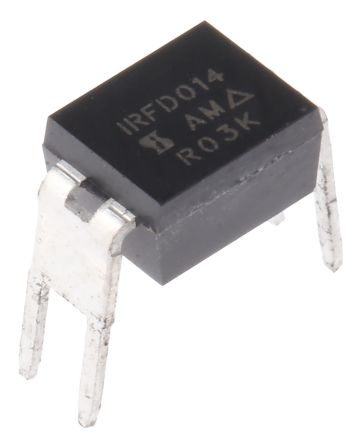

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFD014PBF
Manufacturer

VISHAY
ChipWorker Part#

CW6771726
Category

MOSFET, MOSFET Transistor
Package

DIP-4
Description

HVMDIP-4 N-CH 60V 1.7A 200mΩ
Documentation

Datasheet

IRFD014PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFD014PBF Specifications

Attribute	Attribute Value

Part Number	IRFD014PBF
Manufacturer	VISHAY
ChipWorker Part#	CW6771726
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Power Rating	1.3 W
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	200 mΩ
Polarity	N-Channel
Power Dissipation	1.3 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	1.70 A
Rise Time	50 ns
Input Capacitance (Ciss)	310pF @25V(Vds)
Input Power (Max)	1.3 W
Fall Time	19 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.3 W
	expand all
Size-Length	5 mm
Size-Width	6.29 mm
Size-Height	3.37 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	2500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The IRFD014PBF is a third generation N-channel enhancement-mode Power MOSFET comes with the best combination of fast switching, ruggedized device design and low ON-resistance. The package is a machine-insertable case style which can be stacked in multiple combinations on standard 0.1-inch pin centres. The dual drain serves as a thermal link to the mounting surface for power dissipation levels up to 1W.
