IRFR2307Z - International Rectifier

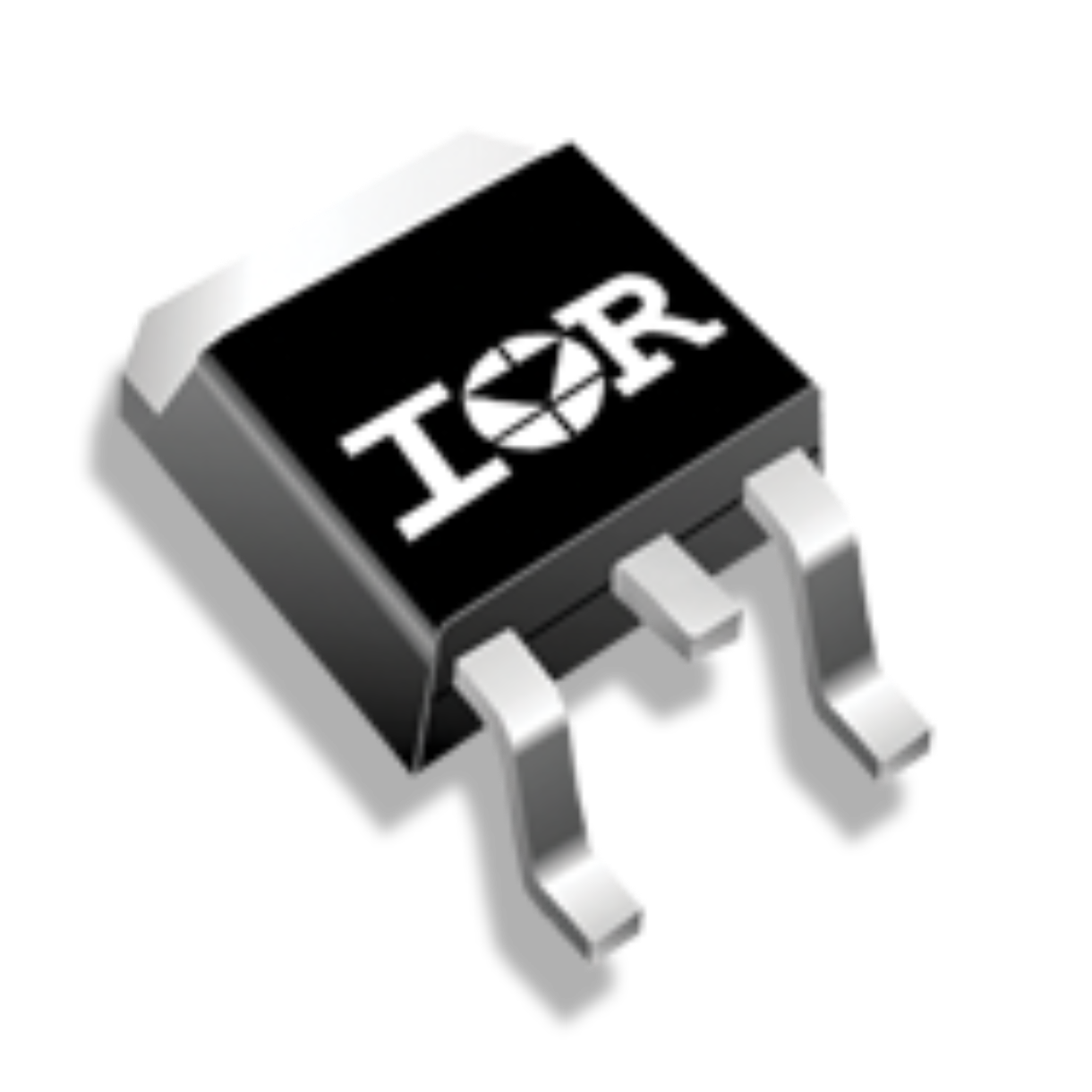

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFR2307Z
Manufacturer

International Rectifier
ChipWorker Part#

CW655978440
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

Trans MOSFET N-CH 75V 53A 3Pin(2+Tab) DPAK
Documentation

Datasheet

IRFR2307Z Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFR2307Z Specifications

Attribute	Attribute Value

Part Number	IRFR2307Z
Manufacturer	International Rectifier
ChipWorker Part#	CW655978440
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	75.0 V
Current Rating	42.0 A
Part Family	IRFR2307Z
Drain to Source Voltage (Vds)	75 V
Continuous Drain Current (Ids)	42.0 A
Rise Time	65.0 ns
Input Capacitance (Ciss)	2190pF @25V(Vds)
Input Power (Max)	110 W
	expand all
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
