L6205D ,Motor Driver - ST Microelectronics

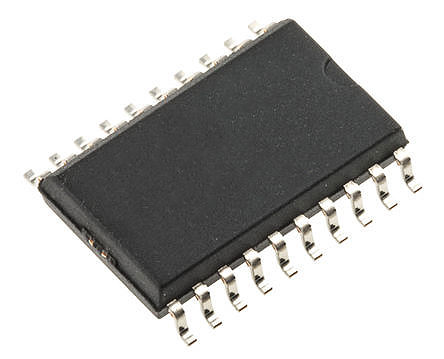

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

235 points

Part No

L6205D
Manufacturer

ST Microelectronics
ChipWorker Part#

CW779153
Category

Motor Driver
Package

SOIC-20
Description

Motor Driver, Dual, DMOS, 8V to 52V supply, 52V/2.8A/2Outputs, SOIC-20
Documentation

Datasheet
Ships from

Moscow
Наличие

5 pcs In Stock
Estimated Price

$ 3.8

Buy L6205D

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

L6205D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

L6205D Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	L6205D
Manufacturer	ST Microelectronics
ChipWorker Part#	CW779153
Category	Motor Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Output Voltage	52 V
Output Current	2.8 A
Supply Current	10.0 mA
Number of Channels	4 Channel
Number of Positions	20 Position
Switching Frequency	100 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	8 V
	expand all
Size-Length	13 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-25℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The L6205D is a DMOS dual Full-bridge Driver for motor control applications, realized in MultiPower-BCD technology, which combines isolated DMOS power transistors with CMOS and bi-polar circuits on the same chip.
Non dissipative over-current protection
Paralleled operation
Cross conduction protection
Thermal shutdown
Under-voltage lockout
Integrated fast free wheeling diodes
