LM431AIZ - TI

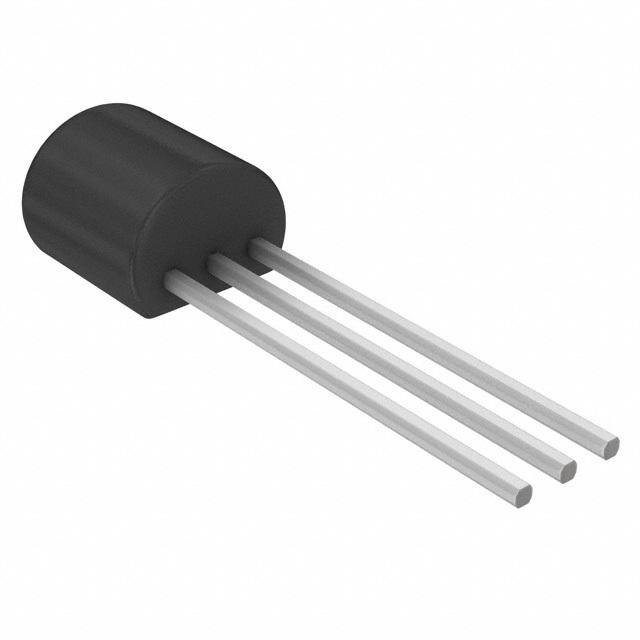

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM431AIZ
Manufacturer

TI
ChipWorker Part#

CW142943040
Category

Voltage Reference
Package

TO-92-3
Description

IC, ADJ SHUNT REG, 2.495V, 2%, TO-92; Topology: Shunt, Programmable; Reference Voltage: 2.495V; Reference Voltage Tol...
Documentation

Datasheet

LM431AIZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM431AIZ Specifications

Attribute	Attribute Value

Part Number	LM431AIZ
Manufacturer	TI
ChipWorker Part#	CW142943040
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Current Rating	100 mA
Capacitance Tolerance	±2.2 %
Output Voltage	2.495V ~ 37V
Output Current	100 mA
Output Voltage (Max)	37 V
Output Voltage (Min)	2.495 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	40 ℃
	expand all
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.2 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Temperature Coefficient	±50 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead

Product Description

Shunt Voltage Reference IC 37V ±2.2% TO-92-3
