LQP15MN1N8W02D - muRata

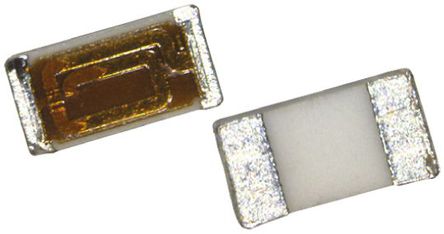

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQP15MN1N8W02D
Manufacturer

muRata
ChipWorker Part#

CW15044639
Category

Inductor
Package

0402
Description

0402 1.8nH ±0.05nH
Documentation

Datasheet

LQP15MN1N8W02D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

LQP15MN1N8W02D Specifications

Attribute	Attribute Value

Part Number	LQP15MN1N8W02D
Manufacturer	muRata
ChipWorker Part#	CW15044639
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	1005
Case/Package	0402
Current Rating	280 mA
Inductance	1.8 nH
Self Resonant Frequency	6 GHz
Part Family	LQP
Inductance Tolerance	±0.05 nH
Test Frequency	500 MHz
DC Resistance (DCR)	≤200 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	200 mΩ
	expand all
Size-Length	1 mm
Size-Width	0.5 mm
Size-Height	0.45 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

1.8nH Unshielded Thick Film Inductor 280mA 200mOhm Max 0402 (1005 Metric)
