LT1358CS8 - Linear Technology

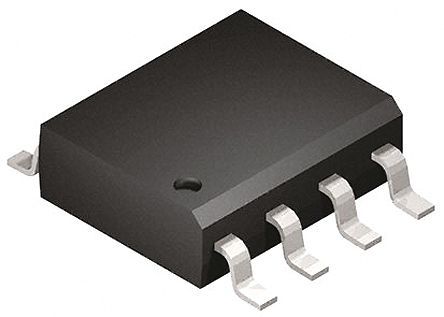

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LT1358CS8
Manufacturer

Linear Technology
ChipWorker Part#

CW128127670
Category

Amplifier, Buffer IC
Package

SOIC-8
Description

IC OPAMP VFB 25MHz 8SO
Documentation

Datasheet

LT1358CS8 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

LT1358CS8 Specifications

Attribute	Attribute Value

Part Number	LT1358CS8
Manufacturer	Linear Technology
ChipWorker Part#	CW128127670
Category	Amplifier, Buffer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	2 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Slew Rate	600 V/μs
Gain Bandwidth Product	25.0 MHz
Input Offset Voltage	200 µV
Input Bias Current	120 nA
Gain Bandwidth	25 MHz
	expand all
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Unknown
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Description
The LT1358/LT1359 are dual and quad low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500 Ω load to ±12.5V with ±15V supplies and a 150 Ω load to ±3V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer applications.
FEATURES
■ 25MHz Gain Bandwidth
■ 600V/µs Slew Rate
■ 2.5mA Maximum Supply Current per Amplifier
■ Unity-Gain Stable
■ C-Load™ Op Amp Drives All Capacitive Loads
■ 8nV/√Hz Input Noise Voltage
■ 600µV Maximum Input Offset Voltage
■ 500nA Maximum Input Bias Current
■ 120nA Maximum Input Offset Current
■ 20V/mV Minimum DC Gain, RL=1k
■ 115ns Settling Time to 0.1%, 10V Step
■ 220ns Settling Time to 0.01%, 10V Step
■ ±12.5V Minimum Output Swing into 500Ω
■ ±3V Minimum Output Swing into 150Ω
■ Specified at ±2.5V, ±5V, and ±15V
