LTC1625CGN - Linear Technology

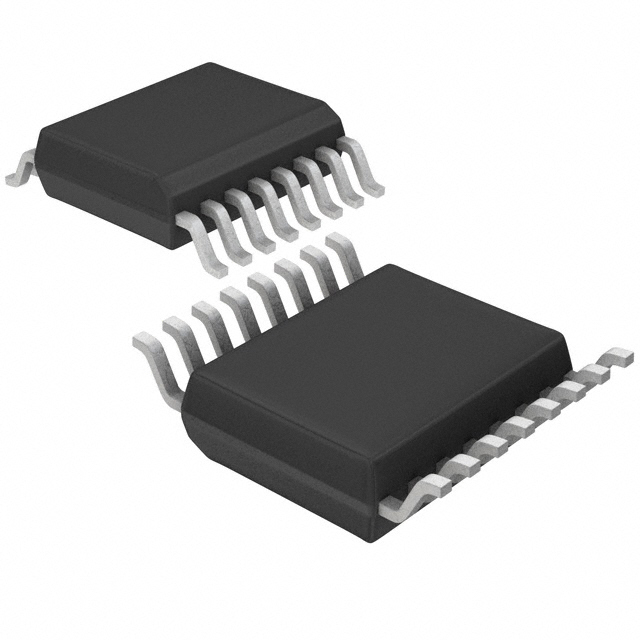

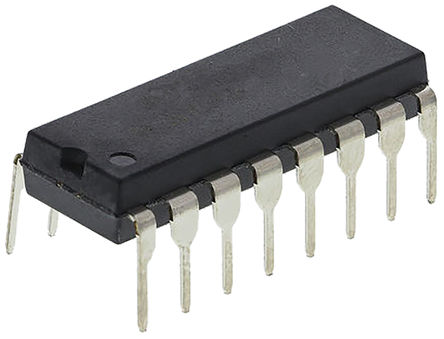

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LTC1625CGN
Manufacturer

Linear Technology
ChipWorker Part#

CW151115990
Category

Voltage Regulator
Package

SSOP
Description

DC-DC Cntrlr Single-OUT Step Down 165kHz Automotive 16Pin SSOP N
Documentation

Datasheet

LTC1625CGN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LTC1625CGN Specifications

Attribute	Attribute Value

Part Number	LTC1625CGN
Manufacturer	Linear Technology
ChipWorker Part#	CW151115990
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SSOP
Number of Outputs	1 Output
Output Voltage	1.19V ~ 36V
Output Current	50.0 mA
Input Voltage (Max)	36 V
Input Voltage (Min)	3.7 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	expand all
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

DESCRIPTION
The LTC®1625 is a synchronous step-down switching regulator controller that drives external N-Channel power MOSFETs using few external components. Current mode control with MOSFET VDS sensing eliminates the need for a sense resistor and improves efficiency. The frequency of a nominal 150kHz internal oscillator can be synchronized to an external clock over a 1.5:1 frequency range.
FEATURES
■ Highest Efficiency Current Mode Controller
■ No Sense Resistor Required
■ Stable High Current Operation
■ Dual N-Channel MOSFET Synchronous Drive
■ Wide VIN Range: 3.7V to 36V
■ Wide VOUT Range: 1.19V to VIN
■ ±1% 1.19V Reference
■ Programmable Fixed Frequency with Injection Lock
■ Very Low Drop Out Operation: 99% Duty Cycle
■ Forced Continuous Mode Control Pin
■ Optional Programmable Soft Start
■ Pin Selectable Output Voltage
■ Foldback Current Limit
■ Output Overvoltage Protection
■ Logic Controlled Micropower Shutdown: IQ < 30µA
■ Available in 16-Lead Narrow SSOP and SO Packages
APPLICATIONS
■ Notebook and Palmtop Computers, PDAs
■ Cellular Telephones and Wireless Modems
■ Battery Chargers
■ Distributed Power
