MMBFJ211 - Fairchild

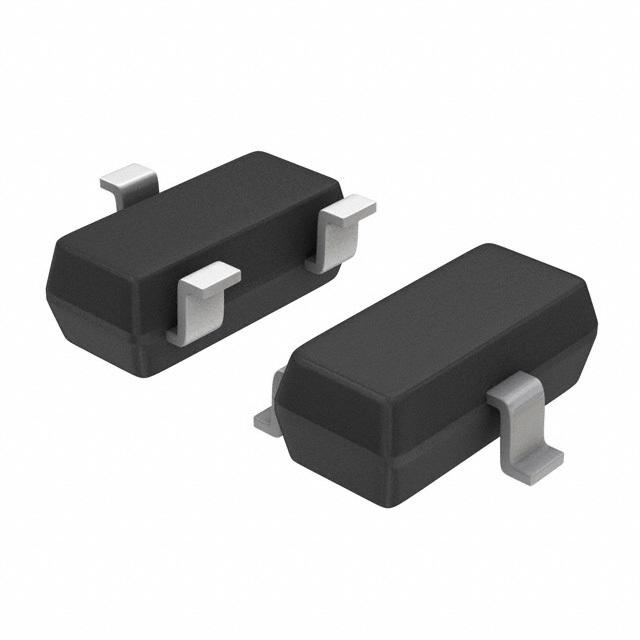

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MMBFJ211
Manufacturer

Fairchild
ChipWorker Part#

CW13194785
Category

JFET Transistor, JFET
Package

SOT-23-3
Description

IC SWITCH RF N-CH 25V 10mA SOT23
Documentation

Datasheet

MMBFJ211 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MMBFJ211 Specifications

Attribute	Attribute Value

Part Number	MMBFJ211
Manufacturer	Fairchild
ChipWorker Part#	CW13194785
Category	JFET Transistor, JFET
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	25.0 V
Current Rating	20 mA
Polarity	N-Channel
Power Dissipation	225 mW
Drain to Source Voltage (Vds)	25.0 V
Continuous Drain Current (Ids)	25.0 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	225 mW
Voltage Rating	25 V
	expand all
Size-Height	0.93 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

This device is designed for HF/VHF mixer/amplifier and applications where Process 50 is not adequate. Sufficient gain and low noise for sensitive receivers. Sourced from Process 90.
