NCV4264ST50T3G - ON Semiconductor

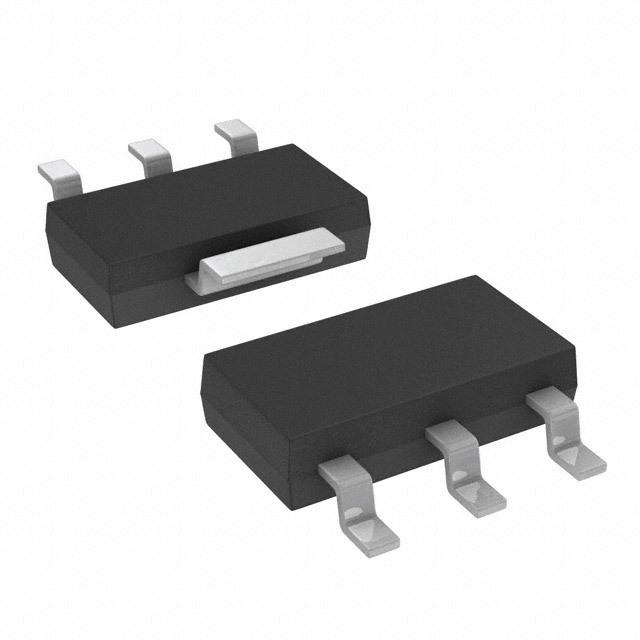

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCV4264ST50T3G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW105894604
Category

Voltage Regulator
Package

TO-261-4
Description

Linear Voltage Regulator, LDO, 100mA 5V, SOT-223 (TO-261) 4 LEAD, 4000-REEL
Documentation

Datasheet

NCV4264ST50T3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCV4264ST50T3G Specifications

Attribute	Attribute Value

Part Number	NCV4264ST50T3G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW105894604
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	100 mA
voltage rating	0.275V @100mA
Input Voltage (Max)	45 V
Input Voltage (Min)	4.5 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	≤45 V
	expand all
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.57 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The NCV4264 is a wide input range, precision 3.3 V and 5.0 V fixed output, low dropout integrated voltage regulator with a full load current rating of 100 mA. The output voltage is accurate within2.0%, and maximum dropout voltage is 500 mV at 100 mA load current. It is internally protected against 45 V input transients, input supply reversal, output overcurrent faults, and excess die temperature. No external components are required to enable these features.
Features
•3.3 V and 5.0 V Fixed Output
•2.0% Output Accuracy, Over Full Temperature Range
•Quiescent Current 400mAatIOUT=1.0mA
•500 mV Maximum Dropout Voltage at 100 mA Load Current
•Wide Input Voltage Operating Range of 4.5 V to 45 V
•Internal Fault Protection
♦--42 V Reverse Voltage
♦Short Circuit/Overcurrent
♦Thermal Overload
•AEC--Q100 Qualified
•NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls
•These are Pb--Free Devices
